- Stock: In Stock
- Model: 10426
- SKU: SAT4596
- Location: India

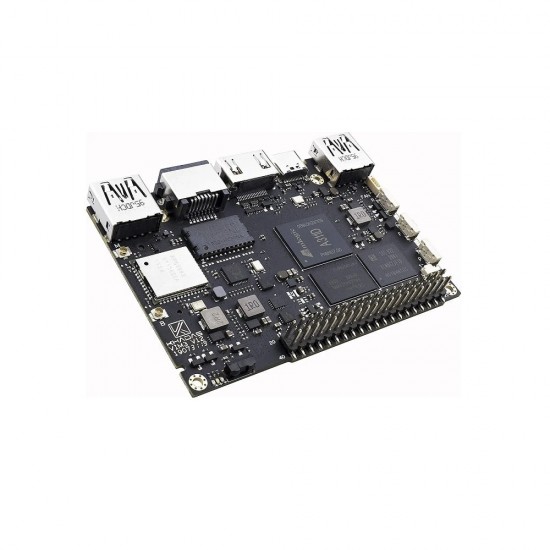

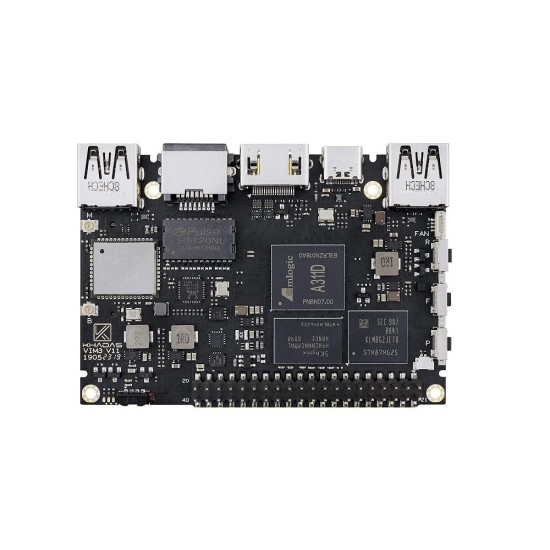

The VIM3 SBC is the latest addition to our popular Khadas VIM series. It has a powerful Amlogic A311D SoC: x4 Cortex A73 performance cores (2.2Ghz), and x2 Cortex A53 efficiency cores (1.8Ghz) are merged into a hexa-core configuration and fabricated with a 12nm process to maximize performance, thermal and electrical efficiency.
VIM3 is designed with the same form factor as our popular VIM2 and VIM1. It is the size of a credit card and fits perfectly inside our DIY Case. Although diminutive, VIM3 is competitively-priced and fully featured; everything you need is already built-in.

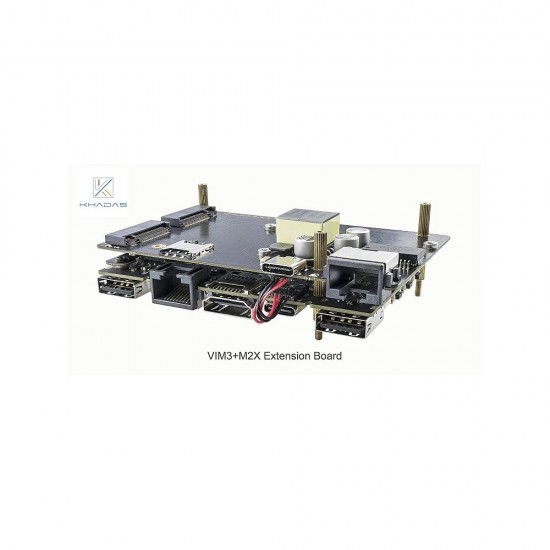

Digital-signage developers will love the programmable MCU, MIPI-CSI for dual cameras, real-time clock, wake-on-lan functionality, and 3-axis g-sensor to detect signage orientation. The M2X Extension Board has an NVMe SSD slot, power-over-ethernet, 100-Mbit ethernet, 4G module slot, nano-sim slot, and GPIO.
The new VIM3 SBC goes beyond what our original VIM models have to offer. It has an onboard 5.0 TOPS NPU for neural network applications, an M.2 slot for NVMe SSDs that can switch between PCIe and USB 3.0 via Khadas KBI commands, and a USB-C port with 5-20 volt USB power-delivery input.
Features:
- Faster CPU Performance: A311D big-little architecture. x4 2.2Ghz Cortex-A73 cores, paired with x2 1.8Ghz Cortex-A53 cores.
- Neural Processing Unit for A.I.: Next generation, deep-neural-network applications, at 5.0 TOPS. Download the NPU Toolkit.
- Switchable PCIe and USB 3.0: Use the Khadas KBI to switch the “combo interface” to either the USB-3.0 port or PCIe interface.
- USB-C Power Delivery: Wide range of power input, from 5-20V for power-hungry applications, e.g. Microphone Array and Speakers.
- Dual Independent Displays: HDMI and MIPI-DSI, with 3-axis digital accelerometer for display rotation detection.
- Dual Cameras: 4 lane MIPI-CSI, up to 8MP ISP, with 30 Pin 0.5mm Pitch FPC Connector.

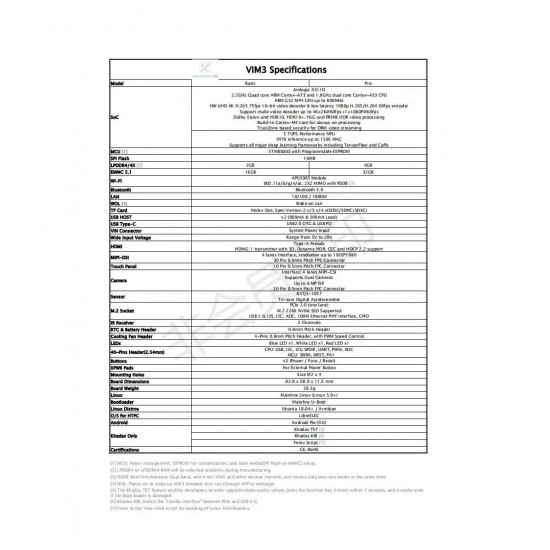

Specifications:
- Model: Khadas VIM3 Basic
- Core Processor: Amlogic A311D
- RAM: 2GB
- ROM: 16 GB eMMC
- Speed: 2.2GHz
- Number of Cores: 6

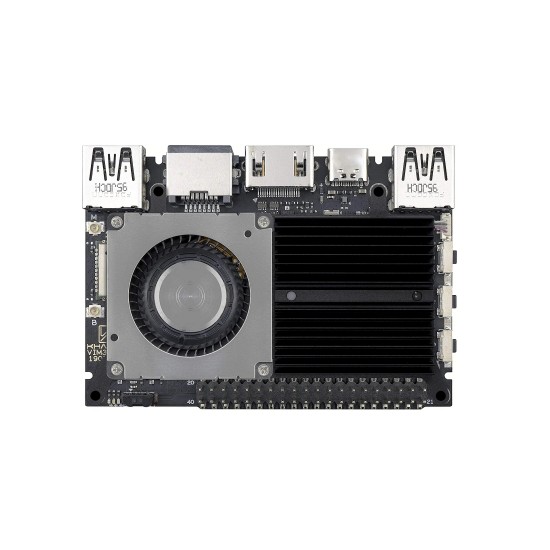

- Cooling Type: Fan
- Expansion Site/Bus: 40-Pin GPIO Header
- Storage Interface: eMMC V5.1
- Video Outputs: HDMI2.1/HDCP 2.2
- Ethernet: 10/100/1000Mbps
- USB Ports: USB 2.0 (1), USB 3.0 (1), USB Type-C
- Dimension: 82.04mm x 57.91mm
Package Includes:

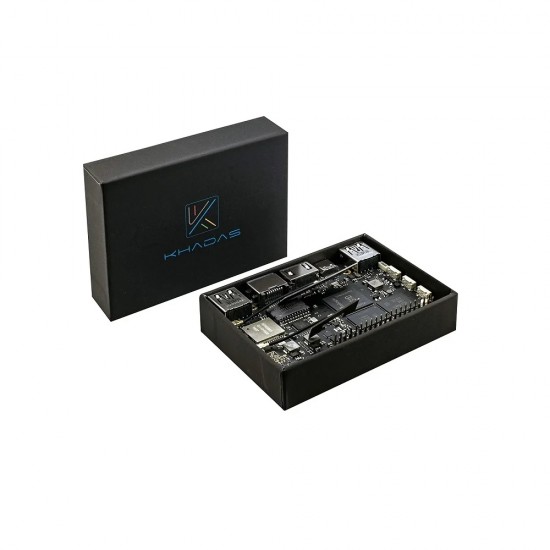

1 x Khadas VIM3 Basic SBC 2GB RAM 16GB eMMC SBC Development Board
2 x WiFi Antenna
