AAEON UP SQUARED Single Board computer with Intel N3350 (F1) 2GB DDR4, 32GB eMMC. Rev A1. 0

AAEON UP SQUARED Single Board computer with Intel N3350 (F1) 2GB DDR4, 32GB eMMC. Rev A1. 0
AAEON UP SQUARED Single Board computer with Intel N3350 (F1) 2GB DDR4, 32GB eMMC. Rev A1. 0
AAEON UP SQUARED Single Board computer with Intel N3350 (F1) 2GB DDR4, 32GB eMMC. Rev A1. 0
AAEON UP SQUARED Single Board computer with Intel N3350 (F1) 2GB DDR4, 32GB eMMC. Rev A1. 0
AAEON UP SQUARED Single Board computer with Intel N3350 (F1) 2GB DDR4, 32GB eMMC. Rev A1. 0
AAEON UP SQUARED Single Board computer with Intel N3350 (F1) 2GB DDR4, 32GB eMMC. Rev A1. 0
AAEON UP SQUARED Single Board computer with Intel N3350 (F1) 2GB DDR4, 32GB eMMC. Rev A1. 0
AAEON UP SQUARED Single Board computer with Intel N3350 (F1) 2GB DDR4, 32GB eMMC. Rev A1. 0
AAEON UP SQUARED Single Board computer with Intel N3350 (F1) 2GB DDR4, 32GB eMMC. Rev A1. 0
Based on 0 reviews. - Write a review
₹18,999.00
Ex GST: ₹16,100.85
  • Stock: In Stock
  • Model: 10423
  • SKU: SAT4593
  • Location: India
AAEON SBC AAEON SBC
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

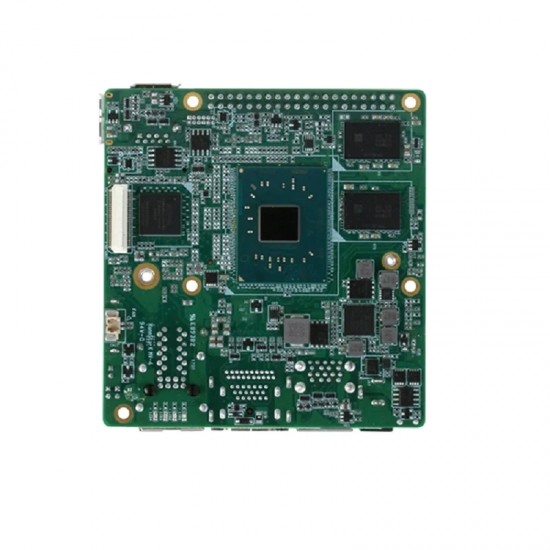

This is AAEON UP SQUARED Single Board computer with Intel N3350 (F1). 2GB DDR4, 32GB eMMC Rev A1. 0. UP Squared (UP²) is world’s fastest maker board with the high performance and low power consumption features of Intel® Celeron™, Pentium™ and Atom™ Processors (codename Apollo Lake).

The internal GPU is the new Intel® Gen. 9 HD with 12/18 Execution Units, supporting 4K Codec Decode and Encode for HEVC⁴, H.264 and VP8. Thanks to the Vector Units Image Processing Unit and Precision Timing Management to synchronize CPU with I/O, improved determinism (cache QoS, Intel Virtualization Technology), all the graphic processing is effortless to UP Squared.

This UP Squared comes with 2GB LPDDR4 RAM and 32GB eMMC. A 40-pin GP-bus provides the freedom for makers to build up their module. Additionally, there is a 60-pin EXHAT for embedded applications. This allows for the exploration of more possibilities. The expansion capabilities of UP2 (UP Squared) goes much further than this. Native mini-PCI-e, M.2 2230 and SATA3 are all built in on the board.

UP Squared supports the AI Core X mPCIe module, which features Intel Movidius Myriad X. With speeds up to 105 fps (80 typical) and 1 trillion floating point operations, adding on the AI Core X to UP Squared creates a powerful, compact AI Edge solution. UP Squared with AI Core X has proven real-world performance, used by AAEON partners in applications from license plate recognition to drone-based visual inspections.


The board supports Windows 10, Windows IoT Core, Ubilinux, Ubuntu, Yocto and Android Nougat. It’s really UP to you to decide which operating system is best for your application. Now, all you need is an UP Squared to begin your project! If you need a complete system for your project, check out the UP Squared System “UPS-GWS01”.


Features:

  • Intel® Pentium® N4200/ Celeron® N3350 Processor SoC
  • Onboard 2GB LPDDR4 Memory
  • Onboard 32GB eMMC Storage
  • Gigabit LAN x 2, USB 2.0 x 2, USB 3.0 (Type A) x 3
  • 5V DC-in, 4-6A
  • 40 pin GPIO x 1
  • DP/eDP/HDMI x 1
  • MIPI-CSI (4-Lane & 2-Lane) x 1
  • Mini-PCIe /M.2 2230 x 1
  • SATA3 x 1
  • 60pin EXHAT


Package Includes:

1 x AAEON UP 4000 Single Board Computer with Intel Celeron N3350, 4GB RAM, 32GB eMMC, Rev A1.0

1 x Passive Heatsink

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
