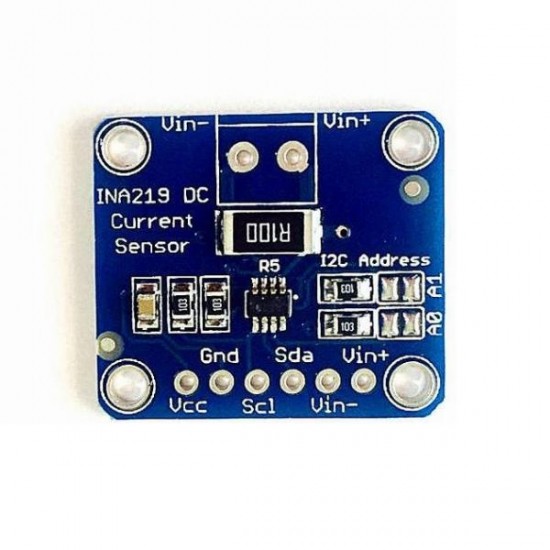

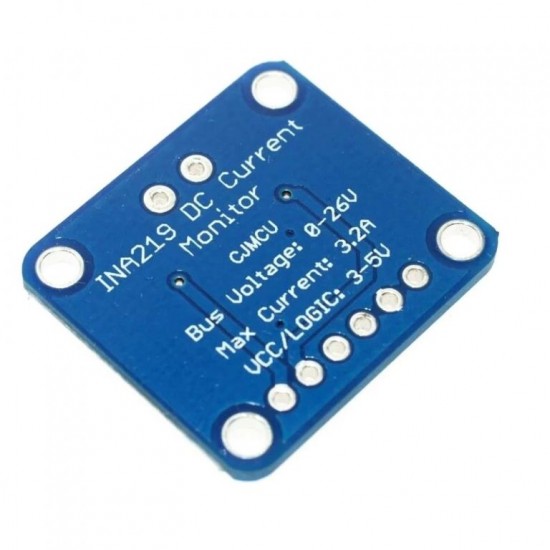

CJMCU-219 INA219 I2C Interface No Drift Bi-directional Current Supply Monitoring Module

CJMCU-219 INA219 I2C Interface No Drift Bi-directional Current Supply Monitoring Module
CJMCU-219 INA219 I2C Interface No Drift Bi-directional Current Supply Monitoring Module
CJMCU-219 INA219 I2C Interface No Drift Bi-directional Current Supply Monitoring Module
CJMCU-219 INA219 I2C Interface No Drift Bi-directional Current Supply Monitoring Module
CJMCU-219 INA219 I2C Interface No Drift Bi-directional Current Supply Monitoring Module
CJMCU-219 INA219 I2C Interface No Drift Bi-directional Current Supply Monitoring Module
CJMCU-219 INA219 I2C Interface No Drift Bi-directional Current Supply Monitoring Module
Based on 7 reviews. - Write a review
₹189.00
Ex GST: ₹160.17
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7058
  • SKU: SAT1220
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

CJMCU-219 is a module with the I2C interface of zero drift and bi-directional current/power monitoring and control ic. It can solve many power-monitoring problems. The device adopts the SOT23 packaging, but for the server, notebook computer, power supply, battery management, and digital electric vehicle and telecommunication equipment measuring flu provide a small low-cost solution.

INA219 other important features include:

  • Calibration programmable registers can directly read its unit of measure is the ampere current, and power in watts per reading.
  • For as many as 128 samplings averaging, in order to realize filter in the noise environment.
  • The I2C interface has a timeout, not only can avoid the bus lock, but also can provide high-speed mode, meet the communication requirements of up to 3.4 MHz.
  • All features are supported software programmable INA219.
  • Using a single power supply, the working voltage between + 3.0 to + 5.5 V.

Specifications and Features:

  • Reports Current, Voltage, and Power
  • 0.1 ohm 1% 2W current sense resistor
  • Up to +26V target voltage
  • Up to ±3.2A current measurement, with ±0.8mA resolution
  • 0.9″ x 0.8″ PCB
  • PCB (no header or terminal block): 1.9g
  • Calibration Registers
  • Senses Bus Voltages from 0 to 26 V
  • 2C- or SMBus-compatible interface. The
  • 16 Programmable Addresses
  • Filtering Options
  • SOT23-8 and SOIC-8 Packages

Package Content:

1 x CJMCU-219 INA219 Module

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
