OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode

OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3/4 with Manual Day Night Mode
Based on 0 reviews. - Write a review
₹1,288.01
Ex GST: ₹1,091.53
  • Stock: In Stock
  • Model: 8464
  • SKU: SAT2626
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The OV5647 5MP 1080P IR-Cut Camera for Raspberry Pi 3 and 4 with Manual Day Night Mode Switching is a custom designed add-on for Raspberry Pi. It attaches to Raspberry Pi by way of one of the small sockets on the board upper surface. This uses the dedicated Raspberry Pi’s onboard  CSI interface, designed especially for interfacing to cameras.

The camera supports night vision. It is compatible with all revisions of the Pi. Powered with a 5-megapixel OV5647 sensor, its best resolution is 1080p.

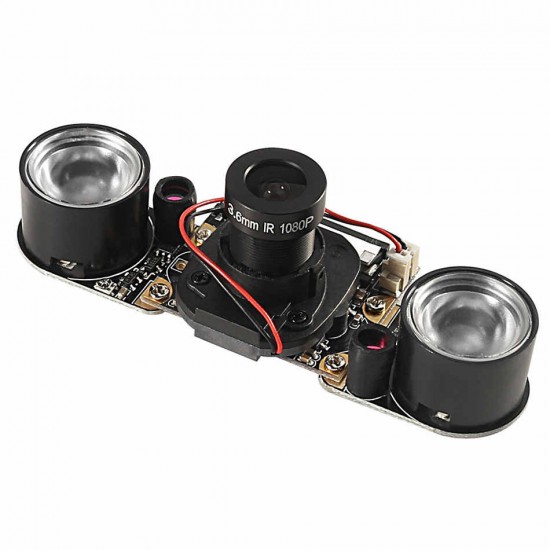

The Externally attachable IR LED  that helps the night vision function. The Mounting Holes Provides 3.3V power output Supports connecting infrared LED and/or fill flash LED. An adjustable resistor is provided on it to control the ambient light threshold of toggling the infrared LED when ambient light is lower than the threshold value, the infrared LED is on, vice versa. Onboard screw holes are used for both attachment and power supply.

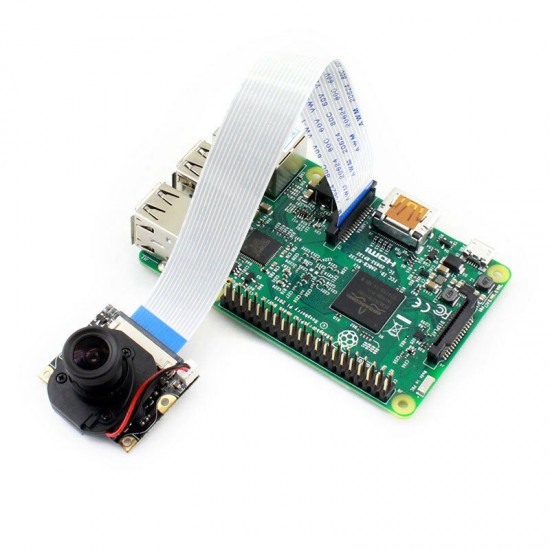

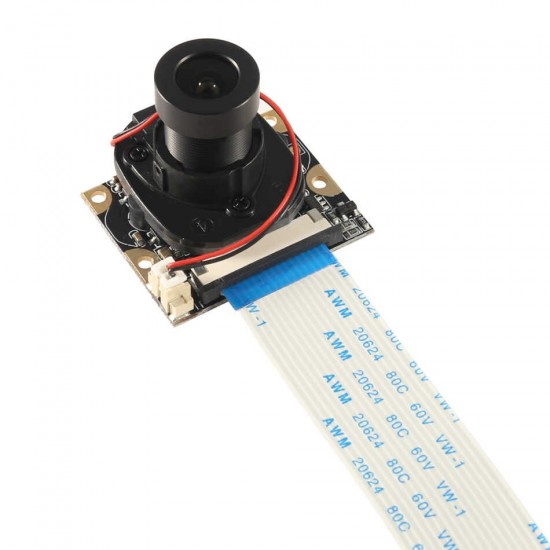

It connects to Raspberry Pi by way of a short ribbon cable. The sensor itself has a native resolution of 5 megapixels and has a fixed focus lens. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p 30, 720p 60 and 640x480p 60/90 video.

The camera is supported in the latest version of Raspbian, Raspberry Pi’s preferred operating system.

We also have Automatic Day/Night Mode switching camera with same specifications, check it out here


Features:

  • Raspberry Pi Camera, supports all revisions of the Pi
  • Using IR-CUT filter, it can eliminate colour distortion in the daylight
  • 5-megapixel OV5647 sensor
  • Can Attach IR LEDs if Night Vision mode is required
  • The screw hole on the camera is used to both fix the infrared lights and through the power for the lights.


Package Includes:

1 x OV5647 5MP 1080P IR-Cut Camera

1 x 15-pin FFC Ribbon cable Strip (opposite sides contact)

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
