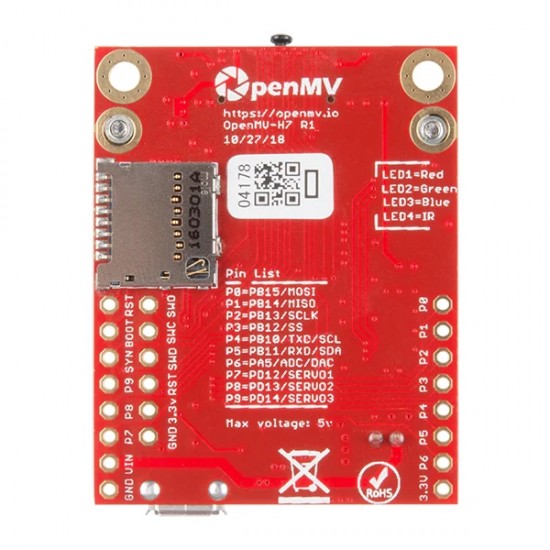

The OpenMV Cam H7 is a small, low power, microcontroller board that allows you to easily implement applications using machine vision in the real world.

You program the OpenMV Cam in high-level Python scripts (courtesy of the MicroPython Operating System) instead of C/C++. This makes it easier to deal with the complex outputs of machine vision algorithms and working with high-level data structures. But, you still have total control over your OpenMV Cam and its I/O pins in Python.

You can easily trigger taking pictures and videos on external events or execute machine vision algorithms to figure out how to control your I/O pins.

The OV7725 image sensor is capable of taking 640×480 8-bit grayscale images or 640×480 16-bit RGB565 images at 60 FPS when the resolution is above 320×240 and 120 FPS when it is below. Most simple algorithms will run at above 30 FPS. Your OpenMV Cam comes with a 2.8mm lens on a standard M12 lens mount. If you want to use more specialized lenses with your OpenMV Cam you can easily buy and attach them yourself.


Documentation:

To download OpenMV cam H7 (Source Code), click here and for OpenMV Cam H7 firmware files, click here.


Applications:

  • Frame Differencing.
  • Color Tracking.
  • Marker Tracking.
  • Face Detection.
  • Eye Tracking.
  • Optical Flow.
  • QR Code Detection/Decoding.
  • Data Matrix Detection/Decoding.
  • Linear Barcode Decoding.
  • AprilTag Tracking.
  • Line Detection.
  • Circle Detection.
  • Rectangle Detection.
  • Template Matching.
  • Image Capture.
  • Video Recording.

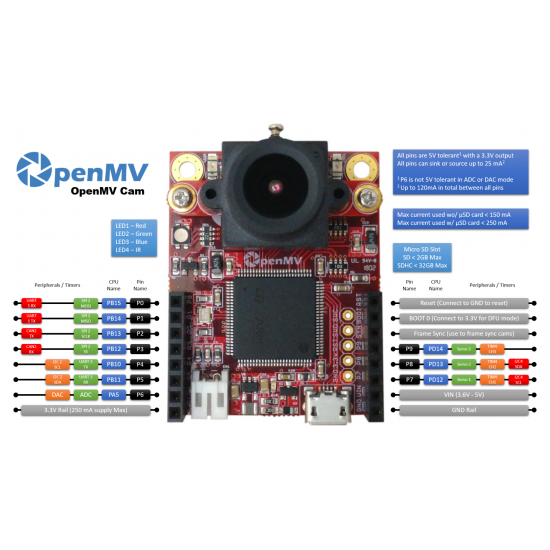

Features:

  • A full-speed USB (12Mbs) interface to your computer. Your OpenMV Cam will appear as a Virtual COM Port and a USB Flash Drive when plugged in.
  • A μSD Card socket capable of 100Mbs reads/writes which allows your OpenMV Cam to record video and easy pull machine vision assets off of the μSD card.
  • An SPI bus that can run up to 100Mbs allowing you to easily stream image data of the system to either the LCD Shield, the WiFi Shield, or another microcontroller.
  • An I2C Bus, CAN Bus, and an Asynchronous Serial Bus (TX/RX) for interfacing with other microcontrollers and sensors.
  • A 12-bit ADC and a 12-bit DAC.
  • Three I/O pins for servo control.
  • Interrupts and PWM on all I/O pins (there are 10 I/O pins on the board).
  • And, an RGB LED and two high power 850nm IR LEDs.
  • A LiPo battery connector is compatible with 3.7V LiPo batteries commonly sold online for hobbyist robotics applications.


Package Includes:

1 x OpenMV Cam H7 – A Machine Vision Camera Module.

2 x Pin Header (Unsoldered)

1 x Accessories set
