Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano / Xavier NX

Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano / Xavier NX
Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano / Xavier NX
Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano / Xavier NX
Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano / Xavier NX
Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano / Xavier NX
Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano / Xavier NX
Arducam 8MP Pan Tilt Zoom PTZ Camera for Raspberry Pi 4/3B+/3 and Jetson Nano / Xavier NX
Based on 0 reviews. - Write a review
₹10,999.00
Ex GST: ₹9,321.19
  • Stock: In Stock
  • Model: 8484
  • SKU: SAT2646
  • Location: India
Arducam Arducam
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

PTZ is an abbreviation for pan, tilt, and zoom and reflects the movement options of the camera, and a pan–tilt–zoom camera (PTZ camera) is a camera that is capable of remote directional and zoom control. A PTZ camera is not a still camera. Instead, it could move the camera and the lens, and that means a single camera can be used to monitor places that should be covered by multiple ones. You can save a lot of cost and time in purchasing and deploying the camera if a PTZ camera can handle the job. With its moveable lens, you will also be able to zoom the camera to see a specific area that you are interested in. To conclude, it’s “do more with less.”


Download Link:

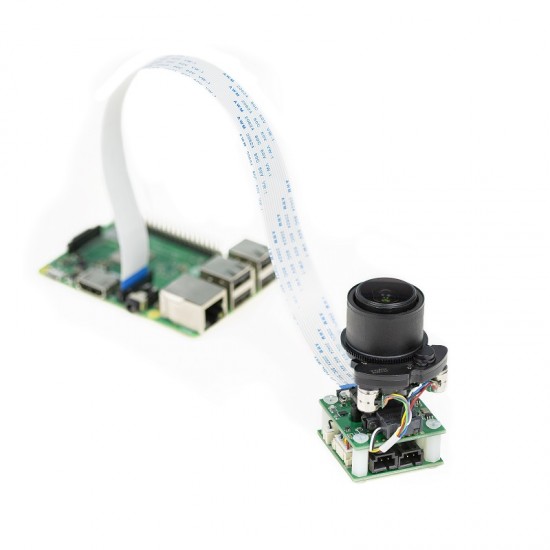

First you need to do Hardware setup. You need to make the connections as shown in the link .

After connection, it is time for the Software setup.  Hence go though the link . Follow the Python-OpenCV tutorial and then arducam PTZ camera example .

To install the Libcamera,  You need to follow the commands given in this link . You need to follow all 5 steps given in the link.

After 3rd step, execute the commands given in  the ” List all cameras”  and “Specify camera” . The camera will be turned ON and OFF quickly .

To  hold  it in ON position, you need to increase the time also.  Hence , follow the “autofocus”  command.  You will see the camera is ON for more time . You can do the focus adjustment as given in the link.


Features:

  • Real PTZ with servos for directional control and varifocal lens for optical zoom now comes to the Raspberry Pi and Jetson Nano / Xavier NX
  • Switchable IR Cut through software for your day/night vision
  • Make full use of the CSI connector now that a single camera can be used to monitor places that should be covered by multiple ones
  • Autofocus control, pan/tilt/zoom keyboard control supported in software
  • 8MP IMX219 Camera board
  • PTZ Controller Board Connector Part Number: S6B-XH-A-1


Applications:

  • IoT cameras
  • Robot cameras
  • Wildlife cameras
  • Other security and surveillance projects

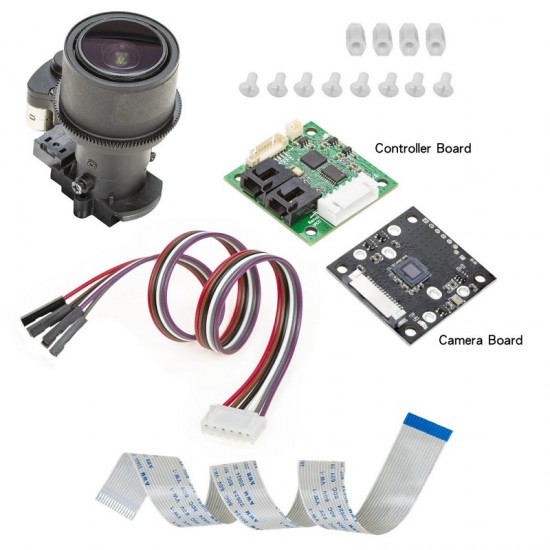

Package includes:

1pcs Arducam PTZ Pan Tilt Zoom Lens

1pcs Controller Board

1pcs 8MP Camera Board

1pcs 15-Pin FPC Cable (11.8 in/30 cm)

1pcs XH2.54 Jumper wire with 6Pin Famale Connector (11.8 in/30 cm)

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
