Arducam 13MP IMX135MIPI Color Camera Module for Raspberry Pi

Arducam 13MP IMX135MIPI Color Camera Module for Raspberry Pi
Arducam 13MP IMX135MIPI Color Camera Module for Raspberry Pi
Arducam 13MP IMX135MIPI Color Camera Module for Raspberry Pi
-7 %
Arducam 13MP IMX135MIPI Color Camera Module for Raspberry Pi
Arducam 13MP IMX135MIPI Color Camera Module for Raspberry Pi
Arducam 13MP IMX135MIPI Color Camera Module for Raspberry Pi
Arducam 13MP IMX135MIPI Color Camera Module for Raspberry Pi
Based on 0 reviews. - Write a review
₹5,129.00
₹5,499.00
Ex GST: ₹4,346.61
  • Stock: In Stock
  • Model: 8506
  • SKU: SAT2668
  • Location: India
Arducam Arducam
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

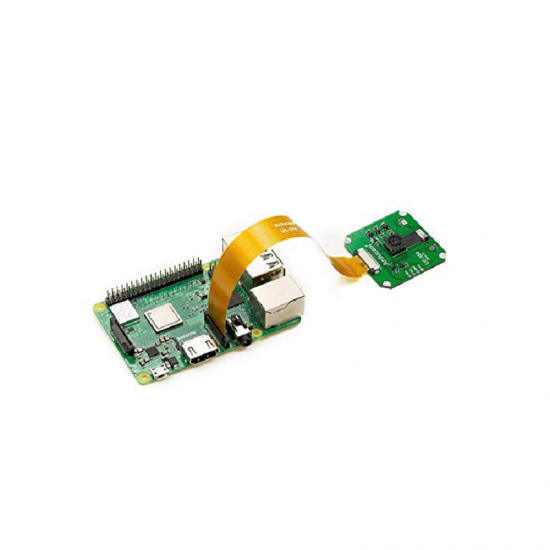

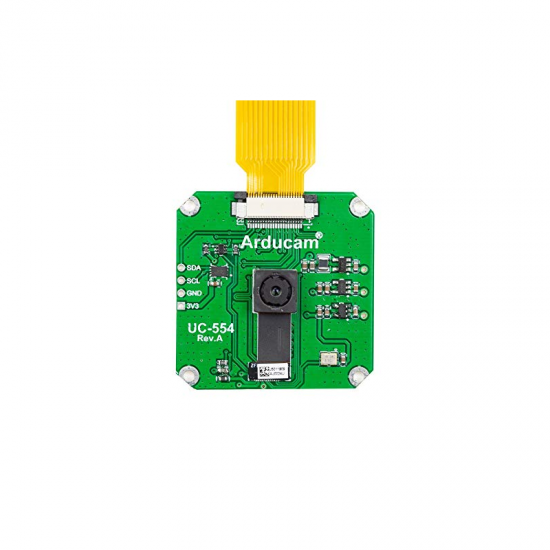

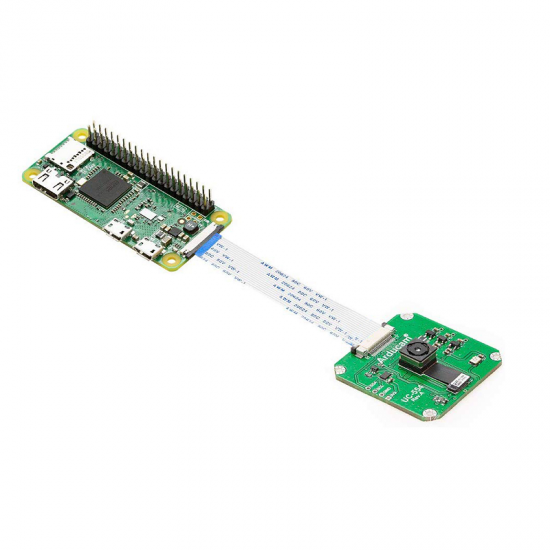

The Arducam 13MP MIPI camera module is mainly designed for Raspberry pi boards and it can be connected directly to RPi’s CSI-2 camera interface without additional hardware.

This camera is based on a 1/3 inch Sony IMX135 image sensor which adopts Exmor-R™ technology to achieve high-speed image capturing with high sensitivity and low noise performance. “RGBW coding” color filter is employed and RGB primary color mosaic is reproduced on-chip. High sensitivity, low dark current, and smear-free features are achieved. It equips an electronic shutter with variable integration time.

This MIPI camera module can be used on other ARM, FPGA, DSP, or Nvidia TX1/TX2 hardware platform as well.


Download link:

To use this camera, it is necessary to do hardware and software setup. To do the hardware setup, please follow the instructions given in the link .

After hardware setup, it is time for software setup. To do that , follow the commands given in the link .


Application:

  • Cellular phones
  • Toys
  • PDAs
  • Other battery-powered products
  • ARM/FPGA/DSP based platforms


Features :

  • 1/3 inch Back-illuminated Sony Exmor-R sensor IMX135
  • Support 13MP/1080p/720p resolution, RAW8/RAW10 output
  • CSI-2 serial data output (MIPI 2Lane/4Lane selectable)
  • 2-wire I2C communication for sensor register settings
  • High sensitivity, low dark current, no smear, excellent anti-blooming characteristics
  • Image compensation processing functions (defect correction, noise reduction)
  • RGBW coding (R, G, B, and “White”(achromatic)) color filter and RGB primary color mosaic reproduction on chip
  • Programmable motorized focus lens, FOV 60 degrees
  • Support all series Raspberry pi boards


Package Contents :

1 x Arducam 13MP IMX135MIPI Color Camera Module for Raspberry Pi

1 x  150mm 15pin 1.0mm to 22pin 0.5mm pitch FPC cable

1 x  80mm 22pin 0.5mm pitch FPC cable

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
