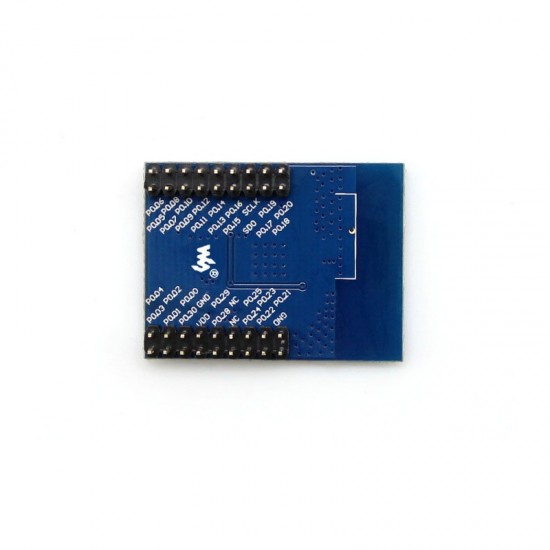

NRF 51822 BLE 4.0 Bluetooth Module Wireless Low-power Development Board
₹898.99
Ex GST: ₹761.86
- Stock: In Stock
- Model: 9405
- SKU: SAT3575
- Location: India
₹56.64
Ex GST: ₹48.00
NRF 51822 BLE 4.0 Bluetooth Module Wireless Low-power Development Board is a Core51822 is a wireless module based on nRF 51822 – the Multiprotocol Bluetooth® 4.0 low energy/2.4 GHz RF SoC designed for ULP (ultra-low power) wireless applications.
Headers Expansion:
NRF 51822 BLE 4.0 Bluetooth Module Wireless Low-power Development Board
Applications:
Wearable devices
Bluetooth intelligent application
Mobile phone accessories
RFID labels
Smart home appliances
Industry control
Data acquisition system
Revision History:
2015.06, Core51822 upgrades the onboard chip to Rev3, features 32kB RAM, supports higher version SDK, and all the demo codes are still compatible with the Rev2 ones.
Features:
- 2.4 GHz multiprotocol RF transceiver
- ARM® Cortex M0 32 bit processor
- 128 bit AES HW encryption
- 256kB flash & 32kB RAM
- Programmable Peripheral Interconnect (PPI)
- 10 bit ADC
- Programmable output power: -20 to +4 dBm
- Independent application development and protocol stack
- Fully compatible with NRF24L series
- Pinout compatible with NRF51xxx series
- Global separate power management
- Onboard Antenna
Package Includes:
1 x NRF51822 BLE 4.0 Bluetooth Module Wireless Low-power Development Board
