Please note, ELRS is a new open source project so please only order this if you are comfortable with regular firmware updates as the firmware is still in beta. We will only be able to offer limited support due to the early nature of the firmware, but we think this project has great potential.

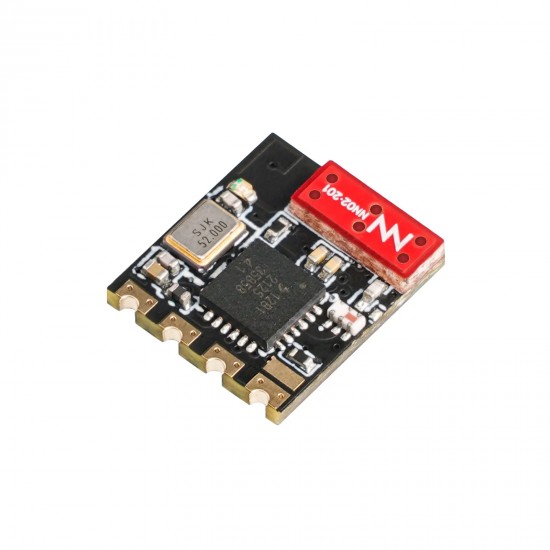

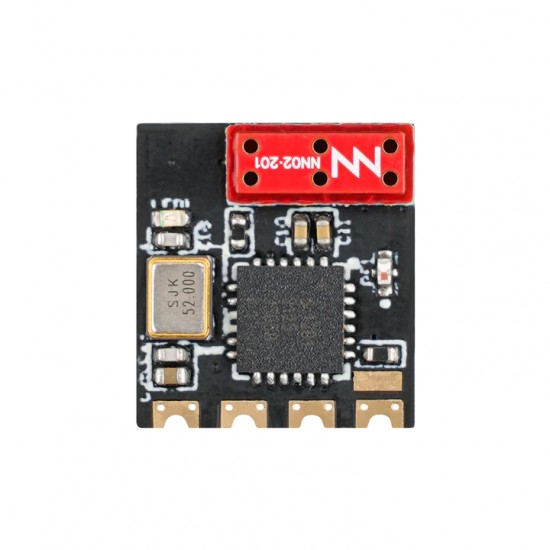

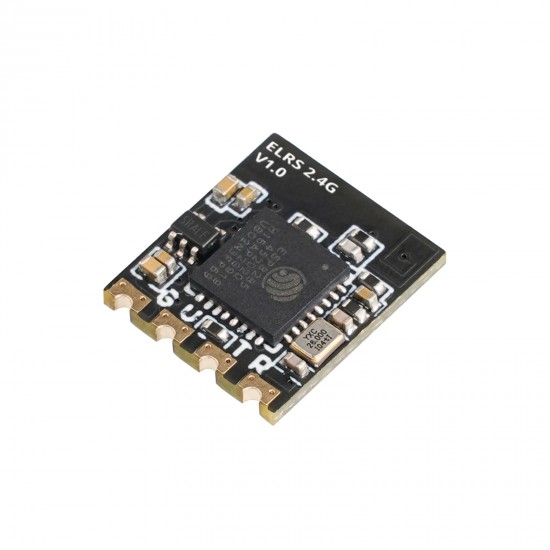

BetaFPV Nano RX or Lite RX
Nano receiver (2.4G version) is the first and (so far) the only receiver with power amplifier (PA+LNA). It has 100mW telemetry output and better sensitivity when longer range. Lite receiver doesn’t have a PA/LNA on them, so its telemetry power is as what the RF chip SX1280 came with 17mW.
The Lite RX is ideal on small whoops where you care about space and weight, making it the ideal long range whoop receiver at only 0.47g.
Specifications

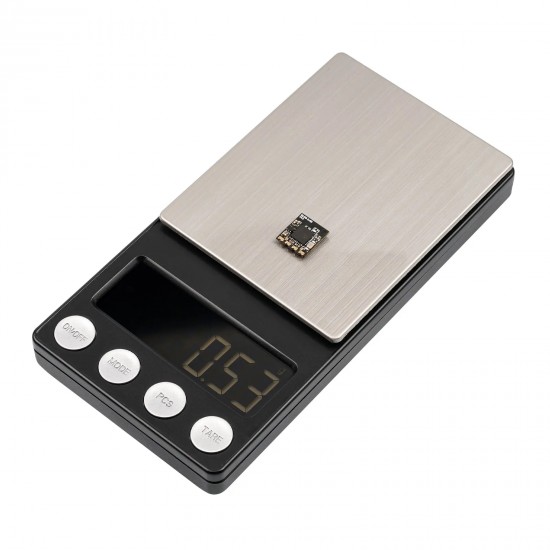

- Weight: 0.53g (with Flat SMD ceramic antenna)
- Size: 11mm*10mm*3mm
- Telemetry power: 17mW
- Frequency bands (Nano receiver 2.4G version): 2.4GHz ISM
- Input voltage: 5V
- Antenna: Integrated SMD ceramic antenna
Diagram
Lite receiver 2.4G version diagram as shown below.
