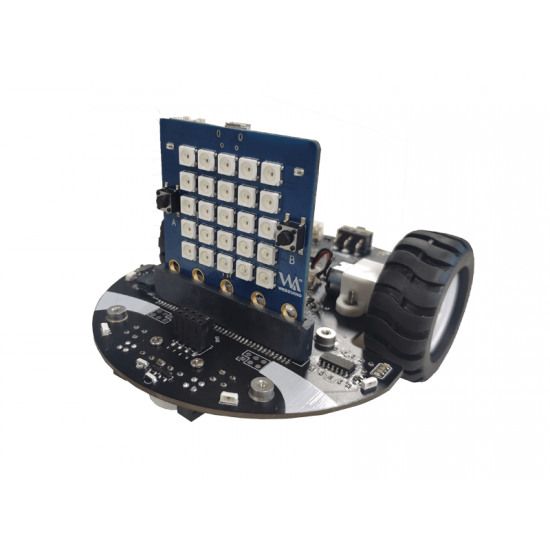

Banana Pi BPI-QCar Robot STEAM education Kit

Banana Pi BPI-QCar Robot STEAM education Kit
In Stock
Banana Pi BPI-QCar Robot STEAM education Kit
Based on 0 reviews. - Write a review
₹100.01
Ex GST: ₹84.75
  • Stock: In Stock
  • Model: 9955
  • SKU: SAT4125
  • Location: India
Banana Pi Banana Pi
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

Banana PI BPI Q-Car,which is a robot focusing on maker education.Compatible with Web:Bit(BPI: Bit) and Micro:Bit development boards.Small car body, highly integrated functions, plug and play, can quickly children‘s attention, complete the quick start of graphics programming, cultivate independent thinking and logical thinking ability


Main function：

  • Ultrasonic ranging sensor
  • Tracking sensor
  • Infrared transmitter and receiver
  • buzzer
  • 10 programmable atmosphere lights
  • A pair of wheels and speed sensors under your control!


Key Features：

  • support Micro:bit, PBI:bit(Web:bit) and BPI-AI(WEB:AI) boards
  • support Makecode graphical programming(with micro:bit)，support Webduino graphical programming（with BPI:bit）,and it also support MicroPython arduino（Micro:bit/BPI:bit）
  • Compact body, strong integrity
  • N20 Miniature reducer
  • Infrared emission, infrared reception, line patrol, speed measurement, atmosphere lamp, I2C interface (support 3.3V and 5V), ultrasonic interface, buzzer, steering gear interface, needle row expansion port, expansion screw hole, etc...Fully functional, strong expansibility
  • Easy to use it.


Hardware interface:



Hardware spec:

  • supply voltage：3.6V~3.7V DC(3.6V~3.7V lithium battery)
  • Infrared line patrol sensor(high/low-level)×2 (P1 P2)
  • buzzer×1 (P0)
  • infrared emission×1 (P8)
  • infrared receiver(NEC encode)×1 (P15)
  • RGB ambient lighting(Full color 16 million colors）×10 (P16)
  • SR04、SR04P Ultrasonic interface(5V)×1 (Trig:P12 Echo:P14)
  • I2C interface(3.3V/5V切换）×1
  • Special interface for steering gear ×4 (S5 S6 S7 S8)
  • IO extend port ×2 (P3 P4 P9 P10)
  • N20 Metal reduction motor×2 (S5 S6 S7 S8)
  • Motor reduction ratio：1：100
  • Maximum motor speed：133 revolutions per minute
  • Motor drive mode：PWM motor drive
  • Protection cover and expansion M3 screw hole×6
  • Programming mode：makecode、Mind+,Webduino、MicroPython,Arduino
  • size：9.77mm×12.09mm×1.23mm（not include micro:bit and BPI:bit board high）
  • weight：125.5g（not include micro:bit/BPI:bit Motherboard and peripheral accessories）


Online wiki development document:https://wiki.banana-pi.org/BPI_Q-Car_kit

Package Includes :

1 x Banana Pi BPI-QCar Robot STEAM education Kit
