BananaPi BPI-M2S new design with Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU,NPU for AI at 5.0 TOPS, support Camera and MIPI-CSI interface ,HDMI output,2 Gigabit port . 4G RAM and 16 GB eMMC flash, also support Amlogic S922x chip
Banana Pi BPI-M2S use Amlogic A311D 12nm process low power, high performance processor suitable for computing, personal mobile Internet devices and other smart device applications. It is based on the Big/Little architecture and integrates the dual-core Cortex-A73 and quad-core Cortex-A53 with an example 5.0T NPU processor. The A311D motherboard program using the chip, compared with the common four-core program in the market, has a qualitative leap in performance, can play various formats of HD video HDMI can output 4K*2K/60 frames of video, can deal with complex interactive operations such as deep learning.
BPI-M2S same size as Banana Pi BPI-M2+ and Banana Pi BPI-M2 Pro
Hardware interfact:
Key Features：
- Amlogic A311D Quad core ARM Cortex-A73 and dual core ARM Cortex-A53 CPU ,ARM G52 MP4(6EE) GPU
- NPU for AI :Next generation, deep-neural-network applications, at 5.0 TOPS
- 4GB LPDDR4 RAM
- 16GB eMMC flash (Max 128G)
- support MIPI DSI Camera interface
- support MIPI CSI Screen interface
- 2 Gigabit port
- HDMI output
- 40 PIN GPIO
- support Android and Linux system.
Support PoE module and WiFI&BT module onboard
Banana PI BPI-M2S Amlogic A311D / S922X
BPI-M2S wiki online documents:https://wiki.banana-pi.org/Banana_Pi_BPI-M2S
Package Includes :

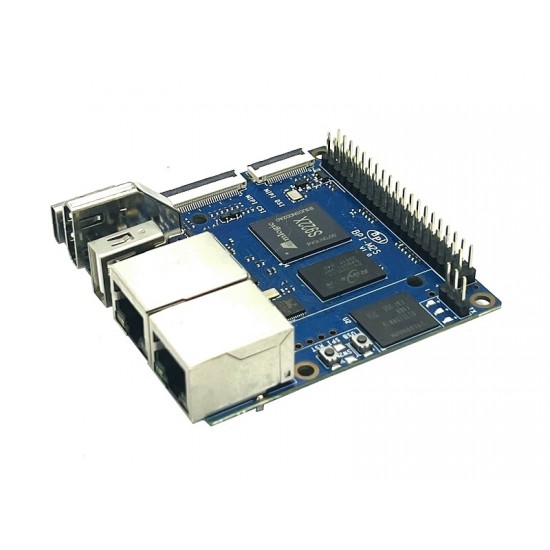

1 x BananaPi BPI-M2S with 4GB RAM 16GB eMMC
