Banana Pi BPI-S64 core use Actions SOC S700 design
₹100.01
Ex GST: ₹84.75
- Stock: Product under maintanance
- Model: 9929
- SKU: SAT4099
- Location: India
₹56.64
Ex GST: ₹48.00
-vs680-design-onboard-4g-lpddr4-and-16g-emmc-1-70x70w.jpg "Banana Pi BPI-M6")
Banana Pi BPI-S64 core use Actions SOC S700 design. S700 chip with ARM Cortex-A53 Quad-Core CPU,Mali450 MP4 GPU. BPI-S64 core with 2G LPDDR3 and 8G eMMC flash onboard.
BPI-S64 core modules are small enough to fit all kinds of hardware. In addition,S64 core also provides I/O boards with GPIO ports, as well as USB, MicroUSB, CSI, DSI, HDMI, and MicroSD and other many interfaces.
Key Features:
- CPU: Actions SOC S700，ARM Cortex-A53 Quad-Core CPU
- GPU：Mali450 MP4 GPU ,OpenGL ES2.0/1.1 OpenVG 1.1 EGL 1.5
- 2GB LPDDR3
- 8GB eMMC flash onboard

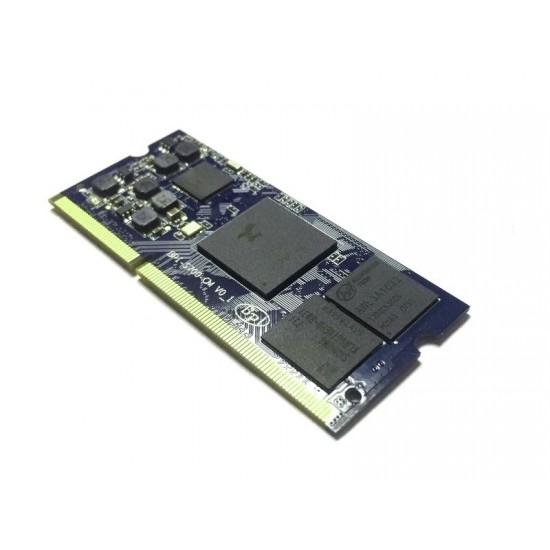

BPI-S64 core board.
BPI-S64 core board spec:
HardWare Specification of Banana pi BPI-S64 core
| CPU | Actions SOC S700，ARM Cortex-A53 Quad-Core CPU,Mali450 MP4 GPU |
| Memory | 2GB LPDDR3 |
| Storage | 8GB eMMC |
| interface | SODIMM-DDR3，204 PIN , all S700 GPIO support |
| size | 67.5 x 30 mm |
BPI-S64 core Kit with expansion development board
HardWare Specification of Banana pi BPI-S64 core kit
| CPU | Actions SOC S700，ARM Cortex-A53 Quad-Core CPU,Mali450 MP4 GPU |
| GPU | Mali450 MP4 GPU ,OpenGL ES2.0/1.1 OpenVG 1.1 EGL 1.5 |
| Memory | 2GB LPDDR3 |
| Storage | 8GB eMMC |
| Power | 5V @ 2A via DC power |
| Low-level peripherals | 26 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S. |
| Onboard Network | 1 x 10/100/1000Mbps Ethernet |
| Wifi/Bluetooth | AP6212 WiFi and BT 4.0 |
| On board Storage | MicroSD (TF) card; 8G eMMC;SIM card slot |
| Display HDMI (Type A) | output with HDCP 1.4, resolutions up 1920x1200； MIPI DP ;LVDS |
| Video decoder/encode | support Real-time vide decode of most popular vide formats ,such as MPEG-4,H.264,H.265. support video encoder for baseline H.264 |
| Audio | support two audio device HDMI and headphone, also support Audio In/Out with PIN define. support 1 MIC in |
| HDMI Out/In | 1* HDMI 1.4 |
| Audio outputs/Inputs | HDMI, I2S audio,Audio micro out |
| 4G | USB standard 4G LTE interface |
| USB 3.0 | 1x USB 3.0 host |
| USB 2.0 | 1x USB 2.0 OTG, 1 x USB port |
| Display | 1* Mini DP ,1* LVDS lcd, |
| Camera | 1 x DVP camera interface ,1 x MIPI interface |
| RTC battery | RTC battery power interface |
| battery | 3.7V battery interface. |
| Buttons | Reset button, Power button, ADC button |
| Leds | Red, Green, Blue |
| Other | IR reciever |
| Sizes | |
| Power | DC 5V/2A |
| Weight | 150g |
Online wiki documents:https://wiki.banana-pi.org/Banana_Pi_BPI-S64_Core
Package Includes :
1 x Banana Pi BPI-S64 core use Actions SOC S700 design
