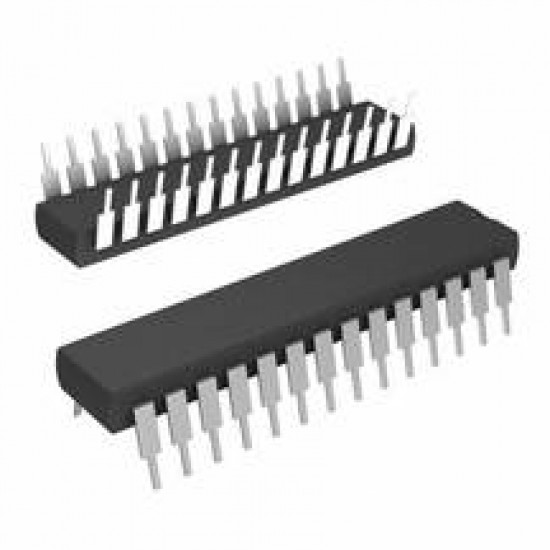

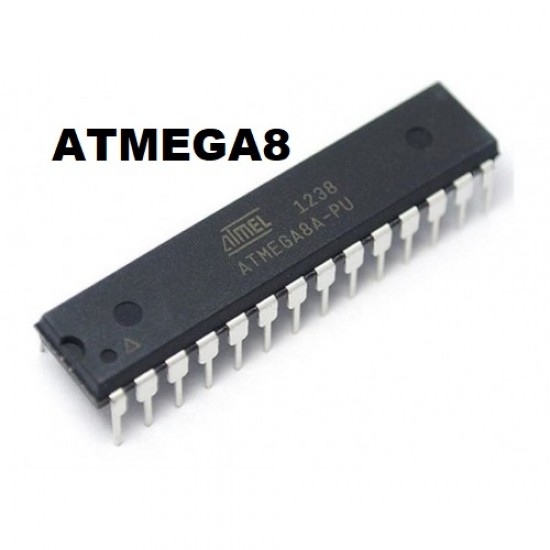

Atmega8 Microcontroller IC

Atmega8 Microcontroller IC
Atmega8 Microcontroller IC
Atmega8 Microcontroller IC
Atmega8 Microcontroller IC
Atmega8 Microcontroller IC
Based on 0 reviews. - Write a review
₹140.00
Ex GST: ₹118.64
Price in reward points: 21
  • Stock: In Stock
  • Model: 7517
  • SKU: SAT1679
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

Atmega8A is a high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 8KB ISP flash memory, 1KB SRAM, 512B EEPROM, a 7-channel/10-bit A/D converter (TQFP and QFN/MLF), and debugWIRE for on-chip debugging. The device supports a throughput of 16 MIPS at 16 MHz and operates between 4.5-5.5 volts. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.


Features:

  • Operating Voltage: 4.5V to 5V.
  • Advanced RISC Architecture.
  • 32 x 8 General Purpose Working Registers.
  • Fully Static Operation.
  • Up to 16 MIPS Throughput at 16 MHz.
  • On-chip 2-cycle Multiplier.
  • High Endurance Non-volatile Memory segments.
  • 8 Kbytes of In-System Self-programmable Flash program memory.
  • 512 Bytes EEPROM.
  • 1 Kbyte Internal SRAM.
  • Write/Erase Cycles: 10,000 Flash/100,000 EEPROM.
  • Data retention: 20 years at 85°C/100 years at 25°C(1).
  • Optional Boot Code Section with Independent Lock Bits.
  • In-System Programming by On-chip Boot Program.
  • True Read-While-Write Operation.
  • Programming Lock for Software Security.
  • Extensive On-chip Debug Support.
  • 8 Single-ended Channels.
  • Byte-oriented Two-wire Serial Interface.
  • Programmable Serial USART.
  • Master/Slave SPI Serial Interface.
  • Programmable Watchdog Timer with Separate On-chip Oscillator.
  • Minimal circuit required for a complete functional project.
  • Applications of ATmega8 Microcontroller:
  • Multiple DIY projects.
  • Projects requiring more than logical control for devices.
  • Microcontroller applications for multiple device interface/Control.

Applications:

  • There are hundreds of applications for ATMEGA8.
  • Industrial control systems.
  • SMPS and Power Regulation systems.
  • Analog signal measuring and manipulations.
  • Embedded systems like coffee machine, vending machine.
  • Motor control systems.
  • Display units.
  • Peripheral Interface system.


Datasheet: Download


Package Content:

1 x Atmega8 Microcontroller ICAtmega8A is a high-performance, low-power Atmel 8-bit AVR RISC-based microcontroller combines 8KB ISP flash memory, 1KB SRAM, 512B EEPROM, a 7-channel/10-bit A/D converter (TQFP and QFN/MLF), and debugWIRE for on-chip debugging. The device supports a throughput of 16 MIPS at 16 MHz and operates between 4.5-5.5 volts. By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, balancing power consumption and processing speed.


Features:

  • Operating Voltage: 4.5V to 5V.
  • Advanced RISC Architecture.
  • 32 x 8 General Purpose Working Registers.
  • Fully Static Operation.
  • Up to 16 MIPS Throughput at 16 MHz.
  • On-chip 2-cycle Multiplier.
  • High Endurance Non-volatile Memory segments.
  • 8 Kbytes of In-System Self-programmable Flash program memory.
  • 512 Bytes EEPROM.
  • 1 Kbyte Internal SRAM.
  • Write/Erase Cycles: 10,000 Flash/100,000 EEPROM.
  • Data retention: 20 years at 85°C/100 years at 25°C(1).
  • Optional Boot Code Section with Independent Lock Bits.
  • In-System Programming by On-chip Boot Program.
  • True Read-While-Write Operation.
  • Programming Lock for Software Security.
  • Extensive On-chip Debug Support.
  • 8 Single-ended Channels.
  • Byte-oriented Two-wire Serial Interface.
  • Programmable Serial USART.
  • Master/Slave SPI Serial Interface.
  • Programmable Watchdog Timer with Separate On-chip Oscillator.
  • Minimal circuit required for a complete functional project.
  • Applications of ATmega8 Microcontroller:
  • Multiple DIY projects.
  • Projects requiring more than logical control for devices.
  • Microcontroller applications for multiple device interface/Control.

Applications:

  • There are hundreds of applications for ATMEGA8.
  • Industrial control systems.
  • SMPS and Power Regulation systems.
  • Analog signal measuring and manipulations.
  • Embedded systems like coffee machine, vending machine.
  • Motor control systems.
  • Display units.
  • Peripheral Interface system.


Datasheet: Download


Package Content:

1 x Atmega8 Microcontroller IC
