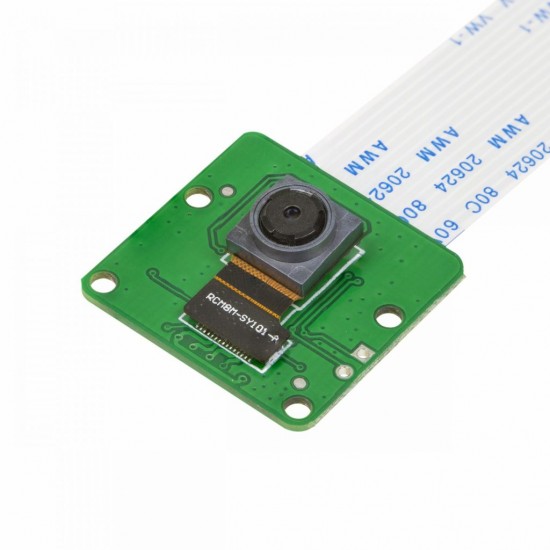

Arducam IMX219 Visible Light Fixed Focus Camera Module for Raspberry Pi

Arducam IMX219 Visible Light Fixed Focus Camera Module for Raspberry Pi
Arducam IMX219 Visible Light Fixed Focus Camera Module for Raspberry Pi
Arducam IMX219 Visible Light Fixed Focus Camera Module for Raspberry Pi
Arducam IMX219 Visible Light Fixed Focus Camera Module for Raspberry Pi
Arducam IMX219 Visible Light Fixed Focus Camera Module for Raspberry Pi
Arducam IMX219 Visible Light Fixed Focus Camera Module for Raspberry Pi
Arducam IMX219 Visible Light Fixed Focus Camera Module for Raspberry Pi
Based on 0 reviews. - Write a review
₹1,899.00
Ex GST: ₹1,609.32
  • Stock: In Stock
  • Model: 8494
  • SKU: SAT2656
  • Location: India
Arducam Arducam
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The IMX219PQH5-C is a diagonal 4.60 mm (Type 1/4.0) CMOS active pixel type image sensor with a square pixel array and 8.08M effective pixels. This chip operates with three power supplies, analogue 2.8 V, digital 1.2 V, and IF 1.8 V, and has low power consumption. High sensitivity, low dark current, and no smear are achieved through the adoption of R, G, and B primary color pigment mosaic filters. This chip features an electronic shutter with variable charge-storage time.

In addition, this product is designed for use in cellular phone and tablet pc. When using this for another application, Sony does not guarantee the quality and reliability of product. Therefore, don’t use this for applications other than cellular phone and tablet pc. Consult your Sony sales representative if you have any questions.


Download link:

To use this camera, it is necessary to do hardware and software setup. To do the hardware setup, please follow the instructions given in the link .

To do the software setup,  please follow the instructions given in the link .

If you want to see other functions such as resolution, frame rate and want to test camera using python  program, then follow the instructions given in the link .


Applications:

  • Unmanned Aerial Vehicles (UAVs)
  • Building Drones
  • Autonomous Robotic Systems
  • Mobile Medical Imaging
  • Intelligent Video Analytics (IVA)


Features:

  • Back-illuminated CMOS image sensor Exmor RTM
  • 2-wire serial communication circuit on chip
  • CSI2 serial data output (selection of 4lane/2lane)
  • Timing generator, H and V driver circuits on chip
  • CDS/PGA on chip
  • 10-bit A/D converter on chip
  • Automatic optical black (OB) clamp circuit on chip
  • PLL on chip (rectangular wave)
  • High sensitivity, low dark current, no smear
  • Excellent anti-blooming characteristics
  • Variable-speed shutter function (1 H units)
  • R, G, B primary color pigment mosaic filters on chip
  • Max. 30 frame/s in all-pixel scan mode
  • Pixel rate: 280 [Mpixel/s] (All-pixels mode)
  • 180 frame/s @720p with 2×2 analog (special) binning, 60 frame/s @10


Packages Includes:

1 x Arducam IMX219 Visible Light Fixed Focus Camera Module

1 x  1.0mm pitch 15cm 15pin FPC cable

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
