Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano

Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano
Based on 0 reviews. - Write a review
₹6,480.01
Ex GST: ₹5,491.53
  • Stock: In Stock
  • Model: 8527
  • SKU: SAT2689
  • Location: India
Arducam Arducam
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

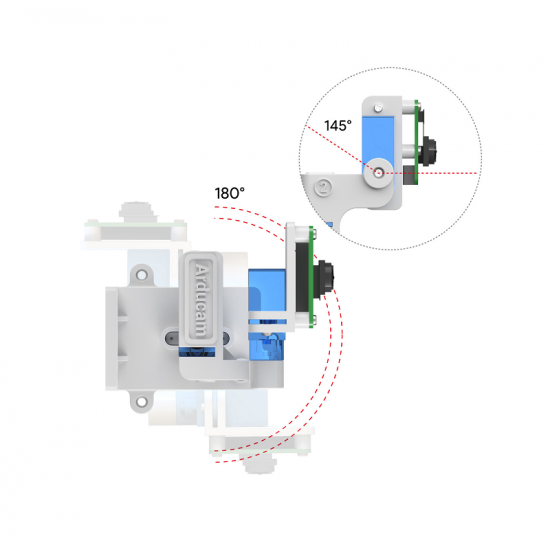

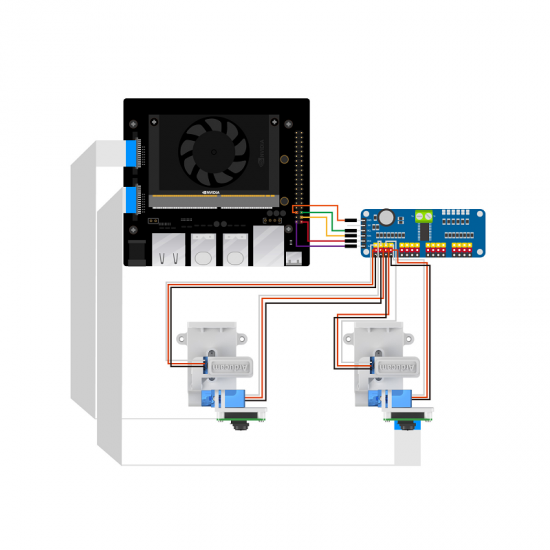

This Arducam Pan Tilt Camera Bundle for Nvidia Jetson Xavier NX/Nano is a complete pan and tilt kit for Nvidia Jetson Xavier NX/Nano boards. The mechanism is based on the GH-S37D digital servos for faster speeds and higher torque and better holding capabilities. They are controlled via a PWM servo controller board which can control up to 16 servos.


Useful link:

To use this camera, please follow this tutorial for hardware and software setup.


Applications:

  • Home Security and Surveillance
  • Robotics
  • DIY Projects


Specifications And Features:

Camera

  • Sensor: IMX219
  • Resolution: 8MP 3280H x 2464V
  • Frame Rate: 21fps@8MP; 60fps@1080P, 180fps@720P
  • IR Sensitivity: Integral IR filter, visible light only
  • Field of View: 62.2°(H)

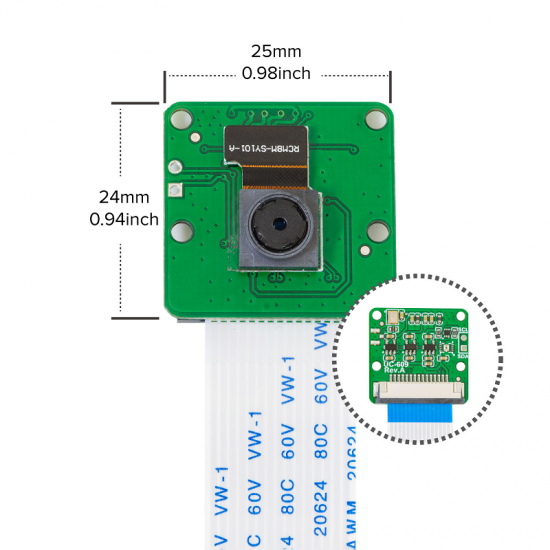

  • Camera Board Dimension: 25mm x 24mm


Digital Servo

  • Torque: 0.6 kg/cm at 3.6V, 0.8 kg/cm at 4.8V
  • Operating Speed: 0.13sec/60° at 3.6V, 0.09sec/60° at 4.8V
  • Operating Voltage: 3.6v～4.8v
  • Operating Current: ＜350mA
  • Dead Band: 3 usec

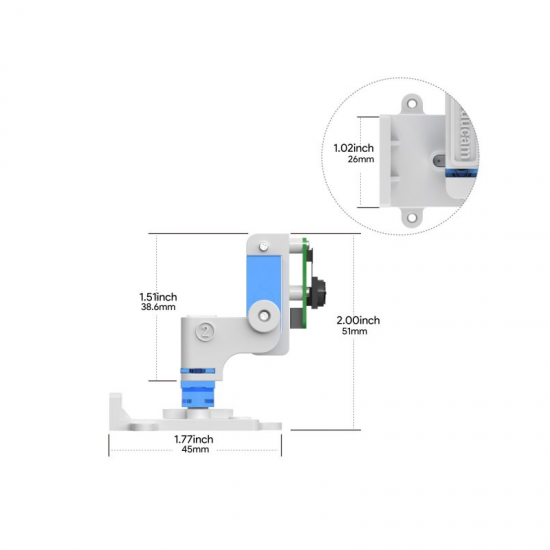

  • Dimension: 20mm x 8.75mm x 22mm


Control Board

  • PWM Driver: PCA9685
  • PWM resolution: 12-bit
  • Ambient light sensor: TSL2581FN
  • Ambient light resolution: 16-bit
  • Communication interface: I2C
  • Operating voltage: 3.3V/5V
  • Dimension: 25mm x 61mm

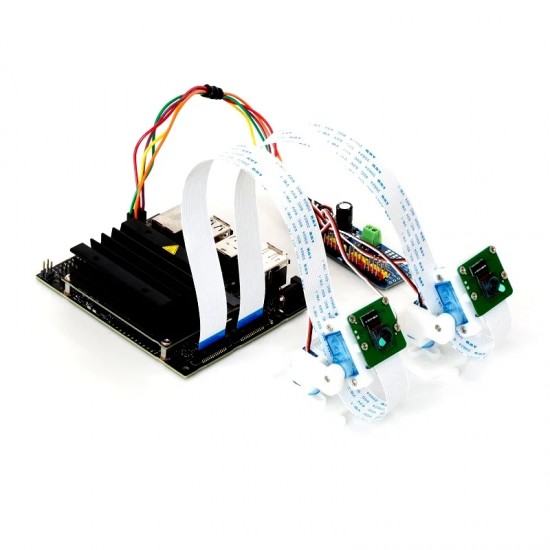

Package Includes:

2 x 8MP IMX219 cameras for Jetson Nano/Xavier NX with 30cm camera cables

4 x Digital servos

2 sets epoxy bracket pieces with screws

1 x PWM control board

5 x Female to female jumper wires (The wire has no fixed color)

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
