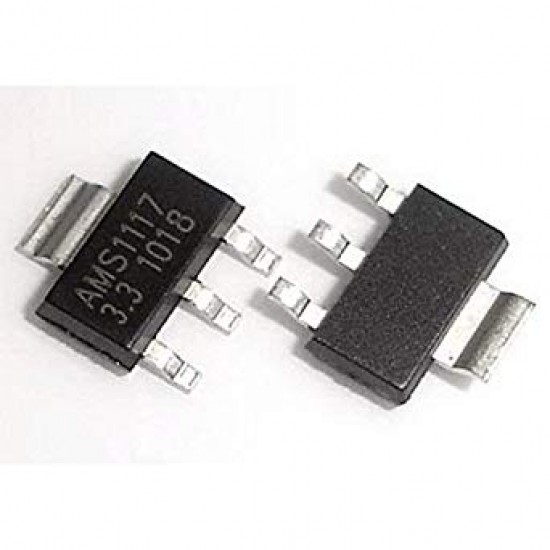

AMS1117 3.3V,1A LDO Voltage Regulator - SOT-223

AMS1117 3.3V,1A LDO Voltage Regulator - SOT-223
AMS1117 3.3V,1A LDO Voltage Regulator - SOT-223
AMS1117 3.3V,1A LDO Voltage Regulator - SOT-223
AMS1117 3.3V,1A LDO Voltage Regulator - SOT-223
AMS1117 3.3V,1A LDO Voltage Regulator - SOT-223
AMS1117 3.3V,1A LDO Voltage Regulator - SOT-223
AMS1117 3.3V,1A LDO Voltage Regulator - SOT-223
Based on 0 reviews. - Write a review
₹10.62
Ex GST: ₹9.00
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7511
  • SKU: SAT1673
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The AMS1117 series of adjustable and fixed voltage regulators are designed to provide up to 1A output current and to operate down to 1V input-to-output differential. The dropout voltage of the device is guaranteed maximum 1.3V, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1.5%. Current limit is set to minimize the stress under overload conditions on both the regulator and power source circuitry.

Features:

  • Output Voltage: 3.3V
  • Output Current of 1A
  • Operates Down to 1V Dropout
  • Line Regulation: 0.2% Max.
  • Load Regulation: 0.4% Max.
  • SOT-223 package

Application:

  • High-Efficiency Linear Regulators
  • Post Regulators for Switching Supplies
  • 5V to 3.3V Linear Regulator
  • Battery Chargers
  • Active SCSI Terminators
  • Power Management for Notebook
  • Battery Powered Instrumentation

Applications:

  • Used for Positive voltage regulations
  • Variable power supply
  • Current limiting circuits
  • Reverse polarity circuits
  • Commonly used in Desktop PC, DVD and other consumer products
  • Used in motor control circuits
  • So if you are looking for SMD component voltage regulator then this IC might be the right choice for you.


Datasheet: Download


Package Content:

1 x AMS1117 IC 3.3V, 1A LDO Voltage Regulator - SOT-223
