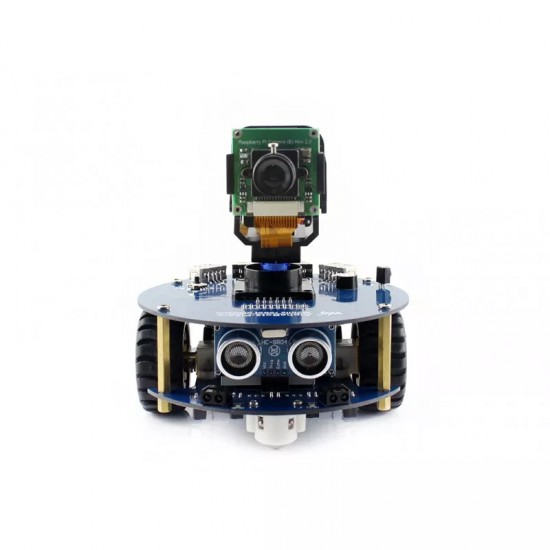

AlphaBot2 robot building kit for Raspberry Pi Zero W (built-in WiFi)
₹9,799.99
Ex GST: ₹8,305.08
Price in reward points: 21
- Stock: In Stock
- Reward Points: 21
- Model: 7859
- SKU: SAT2021
- Location: India
₹56.64
Ex GST: ₹48.00
This AlphaBot2 robot kit is designed to use with Raspberry Pi Zero W. It features rich common robot functions including line tracking, obstacle avoiding, ultrasonic ranging, Bluetooth/infrared/WiFi remote control, video monitoring, etc.
Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no soldering, no wiring. After a few minutes spent on hardware assembing, you're almost there, our open source demo codes is ready to help you get started fast.
Raspberry Pi Zero W Features
- Broadcom BCM2835
- 1GHz ARM11 single-core processor
- 512MB RAM
- Added wireless connectivity
- 802.11 b/g/n wireless LAN
- Bluetooth 4.1
- Bluetooth Low Energy (BLE)
- Micro SD card slot
- Mini-HDMI port (1080p60 video output)
- Micro-USB power
- Micro-USB OTG port
- 40PIN unpopulated GPIO header (compatible with A+/B+/2B/3B)
- CSI camera connector
- Composite video header
- Composite reset header
- Dimension: 65mm x 30mm x 5mm
AlphaBot2 Features
AlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility.
AlphaBot2-Base, the lower base chassis:
- 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking
- Onboard modules like line tracking, obstacle avoiding, needs no messy wiring
- TB6612FNG dual H-bridge motor driver, compared with L298P, it's more efficient, more compact, and less heating
- N20 micro gear motor, with metal gears, low noise, high accuracy
- Onboard RGB LEDs, true color lighting, pretty cool
AlphaBot2-PiZero, the upper adapter board for controller:
- LM2596 voltage regulator, provides the Pi with stable 5V power
- TLC1543 AD acquisition chip, allows the Pi to use analog sensors
- PCA9685 servo controller, make it more smoothly to rotate the pan head
- CP2102 UART converter, easy for controlling the Pi via UART
- USB HUB chip, more USB ports for devices like NIC
What's on the AlphaBot2-Base
- AlphaBot2 control interface: for connecting sorts of controller adapter board
- Ultrasonic module interface
- Obstacle avoiding indicators
- Omni-direction wheel
- ST188: reflective infrared photoelectric sensor, for obstacle avoiding
- ITR20001/T: reflective infrared photoelectric sensor, for line tracking
- Potentiometer for adjusting obstacle avoiding range
- TB6612FNG dual H-bridge motor driver
- LM393 voltage comparator
- N20 micro gear motor reduction rate 1:30, 6V/600RPM
- Rubber wheels diameter 42mm, width 19mm
- Power switch
- Battery holder: supports 14500 batteries
- WS2812B: true color RGB LEDs
- Power indicator
