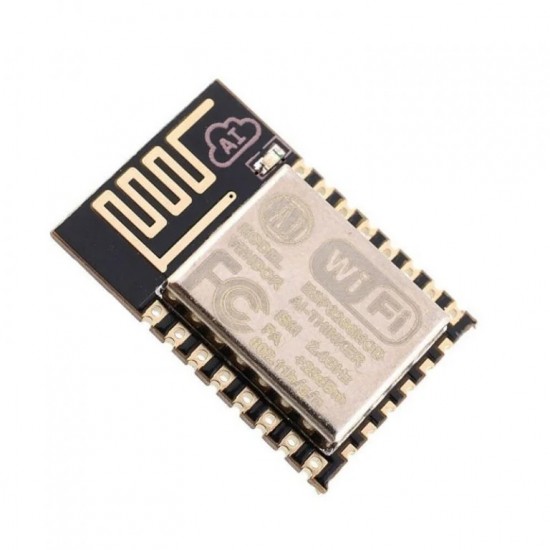

Ai Thinker ESP-12E ESP8266 Serial WiFi Module

Ai Thinker ESP-12E ESP8266 Serial WiFi Module
Ai Thinker ESP-12E ESP8266 Serial WiFi Module
Ai Thinker ESP-12E ESP8266 Serial WiFi Module
Ai Thinker ESP-12E ESP8266 Serial WiFi Module
Ai Thinker ESP-12E ESP8266 Serial WiFi Module
Ai Thinker ESP-12E ESP8266 Serial WiFi Module
Ai Thinker ESP-12E ESP8266 Serial WiFi Module
Ai Thinker ESP-12E ESP8266 Serial WiFi Module
Ai Thinker ESP-12E ESP8266 Serial WiFi Module
Based on 0 reviews. - Write a review
₹269.00
Ex GST: ₹227.97
  • Stock: In Stock
  • Model: 9201
  • SKU: SAT3371
  • Location: India
Ai-Thinker Ai-Thinker
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

Ai Thinker ESP-12E ESP8266 Serial WiFi Module is an ultra-low power consumption technology, designed especially for mobile devices and IoT applications, user’s physical device can be connected to a Wifi wireless network, internet or intranet communication, and networking capabilities.

The Core processor ESP8266 in smaller sizes of the module encapsulates Tensilica L106 integrates industry-leading ultra low power 32-bit MCU micro, with the 16-bit short mode, Clock speed support 80 MHz, 160 MHz, supports the RTOS, integrated Wi-Fi MAC/BB/RF/PA/LNA, on-board antenna.

The module supports standard IEEE802.11 b/g/n agreement, complete TCP/IP protocol stack. Users can use the add modules to an existing device networking or building a separate network controller.

ESP8266 is a high integration wireless SOCs, designed for space and power-constrained mobile platform designers. It provides an unsurpassed ability to embed Wi-Fi capabilities within other systems or to function as a standalone application, with the lowest cost, and minimal space requirement.

Features:

  • 802.11 b/g/n
  • Integrated low power 32-bit MCU
  • Integrated 10-bit ADC
  • Integrated TCP/IP protocol stack
  • Integrated TR switch, balun, LNA, power amplifier and matching network
  • Integrated PLL, regulators, and power management units
  • Supports antenna diversity
  • Wi-Fi 2.4 GHz, support WPA/WPA2
  • Support STA/AP/STA+AP operation modes
  • Support Smart Link Function for both Android and iOS devices
  • Support Smart Link Function for both Android and iOS devices
  • SDIO 2.0, (H) SPI, UART, I2C, I2S, IRDA, PWM, GPIO
  • STBC, 1×1 MIMO, 2×1 MIMO
  • A-MPDU & A-MSDU aggregation and 0.4s guard interval
  • Deep sleep power <10uA, Power-down leakage current < 5uA
  •  Wake up and transmit packets in < 2ms
  •  Standby power consumption of < 1.0mW (DTIM3)
  •  +20dBm output power in 802.11b mode
  •  Operating temperature range -40C ~ 125C

Package includes:

1 x Ai Thinker ESP-12E ESP8266 Serial WiFi Module
