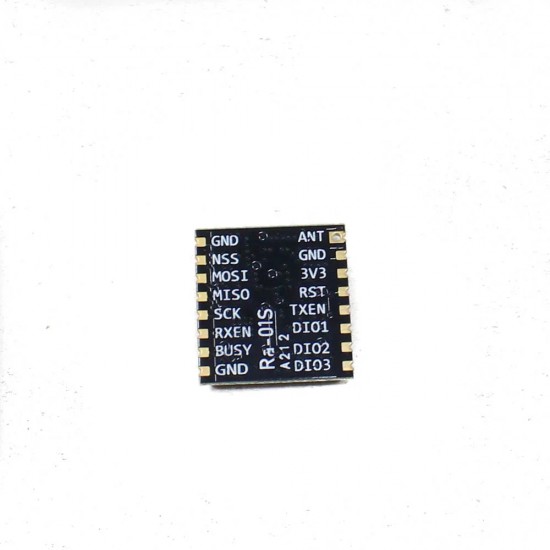

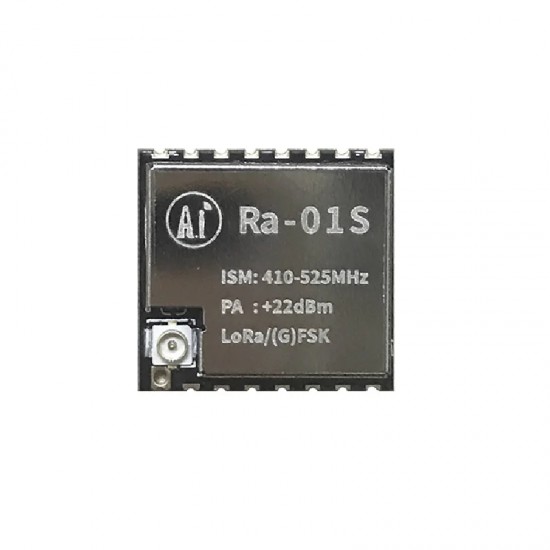

Ai-Thinker LoRa Ra-01S

Ai-Thinker LoRa Ra-01S
Ai-Thinker LoRa Ra-01S
Ai-Thinker LoRa Ra-01S
Ai-Thinker LoRa Ra-01S
Ai-Thinker LoRa Ra-01S
Based on 0 reviews. - Write a review
₹369.00
Ex GST: ₹312.71
  • Stock: In Stock
  • Model: 9189
  • SKU: SAT3359
  • Location: India
Ai-Thinker Ai-Thinker
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

Anxinke LoRa series modules (Ra-01S) are designed and developed by AnxinkeTechnology. This module is used for ultra-long-distance spread-spectrum communication. Its radio chip SX1268 mainly uses LoRa remote mode for ultra-long-distance spread-spectrum communication. It has strong anti-interference and can minimize current consumption. With SEMTECH’s LoRa patented modulation technology, SX1268 has a high sensitivity of over -148dBm, a power output of +22dBm, a long transmission distance, and high reliability. At the same time, compared to traditional modulation technology, LoRa modulation technology also has obvious advantages in anti-blocking and selection, which solves the problem of

distance, anti-interference, and power consumption that traditional designsolutionscannot simultaneously take into account. Application areas are used in automatic meter reading, home building automation, security systems, and remote irrigation systems.

Features:

  • LoRa modem
  • Support FSK, GFSK, MSK, GMSK, LoRa and OOK modulation methods Support frequency band 410MHz~525MHz
  • Working voltage is 3.3V, maximum output is +22dBm, maximumworkingcurrent is140mA
  • Low power consumption characteristics in receiving state, the minimumreceivingcurrent is 4.5 mA, standby current is 1.6mA
  • High sensitivity: as low as -140dBm
  • Small volume dual row stamp hole patch package
  • The module adopts SPI interface, half-duplex communication, with CRC, upto256-byte packet engine

Specification:

Model: Ra-01S

Package: SMD16

Size: 17 x 16 x 3.2(±0.2)MM

Antenna: Compatible with half-hole pads/through-hole pads (need tosolder the antenna)/IPEX socket

Spectrum range: 410MHz~525MHz

Operating temperature: -40 ℃ ~ 85 ℃

Storage environment: -40 ℃ ~ 125 ℃ , < 90%RH

Power supply: 2.7~3.6V，default 3.3V，current ＞ 200mA

Interface SPI Programmable bit rate: Up to 300kbps

Packages Includes:

1 x Ai-Thinker LoRa Ra-01S
