- Stock: In Stock
- Model: 9204
- SKU: SAT3374
- Location: India
As you may be aware, ESP32 boards are more popular than you might think, and AI THINKER is one of the leading manufacturers of development boards, has introduced a line of ESP32 boards. The most distinctive feature is that Ai Thinker is the only brand that produces official ESp32 boards.
One of the brands that make IoT modules and antennas is Ai Thinker. Because of the Bluetooth and wifi features, this board is gaining popularity due to its programmable and CAM properties, which allow it to be programmed and used in a compact manner.
Note: Product image may vary from the actual product.

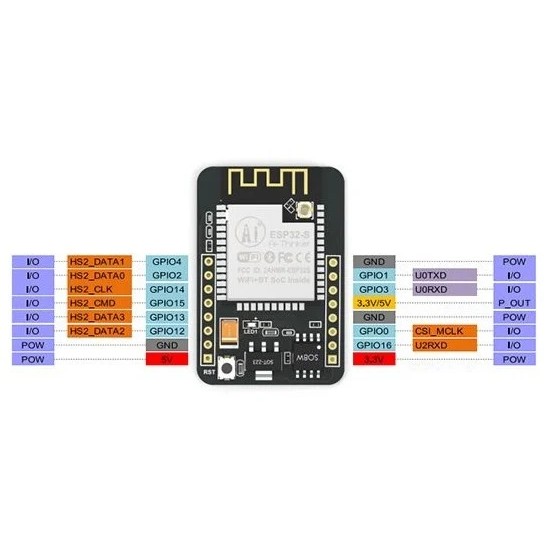

Pin Configuration:
ESP32-CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.
Features:
- Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
- Low-power dual-core 32-bit CPU for application processors
- Up to 240MHz, up to 600 DMIPS
- Built-in 520 KB SRAM, external 4M PSRAM
- Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
- Support OV2640 and OV7670 cameras with built-in flash
- Support for images WiFI upload
- Support TF card
- Support multiple sleep modes
- Embedded Lwip and FreeRTOS
- Support STA/AP/STA+AP working mode
- Support Smart Config/AirKiss One-click distribution network
- Support for serial local upgrade and remote firmware upgrade (FOTA)
Package Includes:

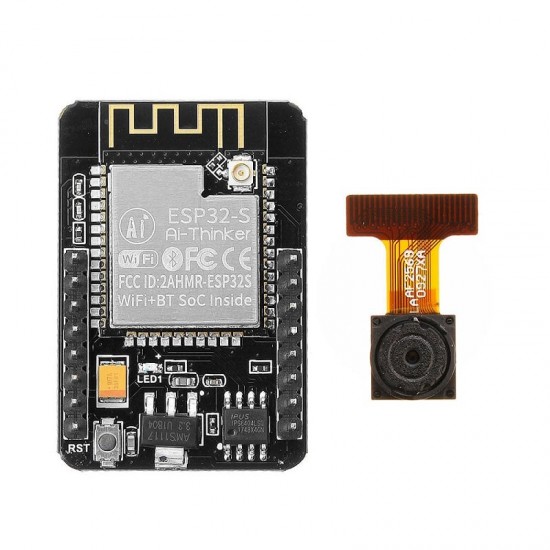

1 x Ai-Thinker ESP32 CAM Development Board WiFi+Bluetooth with AF2569 Camera Module
