Ai-Thinker Ai-WB2-01M Module

Ai-Thinker Ai-WB2-01M Module
Ai-Thinker Ai-WB2-01M Module
Ai-Thinker Ai-WB2-01M Module
Ai-Thinker Ai-WB2-01M Module
Ai-Thinker Ai-WB2-01M Module
Ai-Thinker Ai-WB2-01M Module
Ai-Thinker Ai-WB2-01M Module
Ai-Thinker Ai-WB2-01M Module
Ai-Thinker Ai-WB2-01M Module
Based on 0 reviews. - Write a review
₹249.00
Ex GST: ₹211.02
  • Stock: In Stock
  • Model: 9162
  • SKU: SAT3332
  • Location: India
Ai-Thinker Ai-Thinker
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

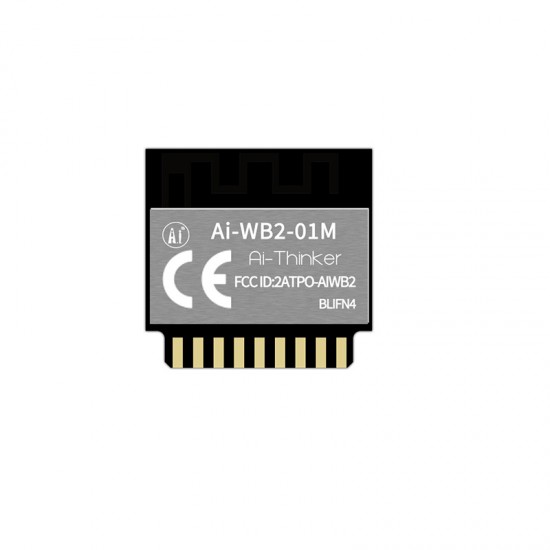

Ai-WB2-01M is a Wi-Fi&BT module developed by Shenzhen Ai-Thinker Technology Co., LTD. The module is equipped with a BL602 chip as the core processor and supports Wi-Fi 802.11b/ g/n protocol and BLE 5.0 protocol. The BL602 chip has a low-power 32-bit RISC CPU, 276KB RAM, and a wealth of peripheral interfaces, including SDIO, SPI, UART, I2C, IR Remote, PWM, ADC, DAC, PIR, GPIO, etc. It can be widely used in the Internet of Things (IoT), mobile devices, wearable electronic devices, smart homes, and other fields.

Features:

  • The package is DIP-18
  • Support IEEE 802.11 b/g/n protocol
  • Wi-Fi Security Support WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
  • Support 20MHz bandwidth and Max rate is 72.2 Mbps
  • Bluetooth BLE 5.0, Bluetooth Mesh
  • Support Station + BLE mode Station + SoftAP + BLE mode
  • Support 32-bit RISC CPU 276KB RAM
  • Secure start-up, supports mirroring with ECC-256 signature
  • Support QSPI/SPI Flash On-The-Fly AES Decryption, support AES 128 CTR mode
  • Support AES 128/192/256-bit encryption engine
  • Support SHA-1/224/256
  • Support true Random number generator (TRNG)
  • Public key Accelerator (PKA), support large number basic operations, software provides signature, verification and
  • other application program interface
  • Support SDIO SPI UART I2C IR remote PWM ADC DAC PIR GPIO etc
  • Integrated Wi-Fi MAC/BB/RF/PA/LNA/BT
  • Support a variety of sleep modes, deep sleep current 12μA
  • Universal AT instruction for quick start
  • Support secondary development, integrated Windows, Linux development environment

Specifications:

Model Ai-WB2-01

Package DIP-18

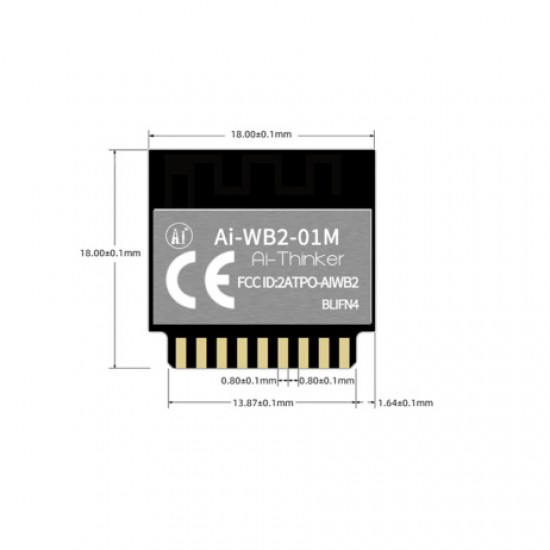

Size 18.0*18.0*2.8(±0.2)mm

Antenna on-board PCB antenna

Frequency 2400~2483.5MHz

Operating temperature -40℃ ~ 85℃

Storage temperature 40℃ ~ 125℃, < 90%RH

Power supply Support voltage 2.7V ~ 3.6V,supply current ≥500mA

Interface UART/GPIO/ADC/PWM/I2C/SPI

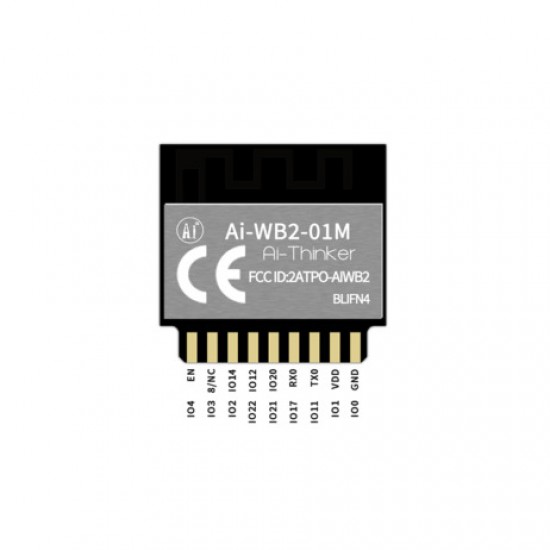

IO 14

UART rate Default 115200 bps

Security WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3

Flash Default 2MByte

Package Includes:

1 x Ai-Thinker Ai-WB2-01M Module
