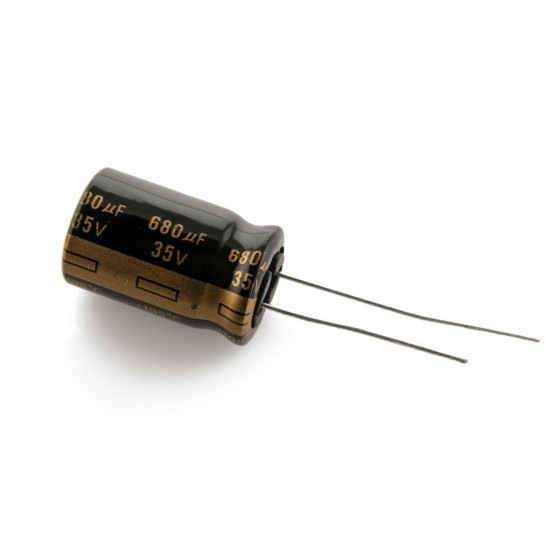

Panasonic 35V 680uF LOW ESR Capacitor

Panasonic 35V 680uF LOW ESR Capacitor
Panasonic 35V 680uF LOW ESR Capacitor
Based on 0 reviews. - Write a review
₹89.00
Ex GST: ₹75.42
  • Stock: In Stock
  • Model: 10339
  • SKU: SAT4509
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This electrolytic aluminum capacitor from Panasonic has a relatively high equivalent series resistance which allows it to generate high heat for a given current level. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 238@2Min μA. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 12.5 mm. Its capacitance value is 680uF. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. The aluminum electrolytic capacitor has a radial termination style.


Specifications

  • Brand/Series: FM Series
  • Capacitance: 680 μF
  • Case Size: 0.492 In. Dia. x 0.787 In. L (12.5 mm Dia. x 20 mm L)
  • Configuration: Radial, Can
  • Current, Ripple: 2.6 A
  • Diameter, Lead: 0.6 mm
  • Dimensions: 0.492″ x 0.787″ (12.5 x 20mm) Dia. x L
  • ESR: 0.018 Ohm
  • Lead Spacing: 0.197 In. (5.00 mm) mm
  • Life: 5000 Hours
  • Material, Element: Aluminum Electrolytic
  • Mounting Type: PCB
  • Packaging: Bulk
  • Series: FM Series
  • Temperature, Operating, Maximum: 105 Deg. C
  • Temperature, Operating, Minimum: -40 Deg. C
  • Termination: Through-hole
  • Tolerance: -20, +20 %
  • Voltage Rating: 35 VDC


Includes

1x Panasonic 35V 680uF LOW ESR Capacitor
