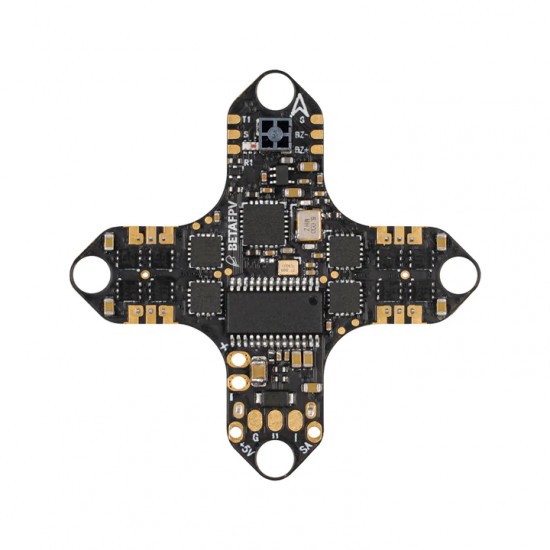

BETA FPV F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G)-BMI270

BETA FPV F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G)-BMI270
BETA FPV F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G)-BMI270
BETA FPV F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G)-BMI270
BETA FPV F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G)-BMI270
BETA FPV F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G)-BMI270
BETA FPV F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G)-BMI270
BETA FPV F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G)-BMI270
BETA FPV F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G)-BMI270
BETA FPV F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G)-BMI270
Based on 0 reviews. - Write a review
₹3,999.00
Ex GST: ₹3,388.98
  • Stock: In Stock
  • Model: 10328
  • SKU: SAT4498
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The classical ultralight F4 1S brushless FC comes back with SPI ExpressLRS 2.4G receiver.

Now the default firmware for F4 1S 5A AIO Brushless Flight Controller (ELRS 2.4G) is updated to Betaflight V4.3.0 Official version, which supports ELRS V2.0. Please check the below link to download the firmware.


SPECIFICATIONS OF FC

  • CPU: STM32F411CEU6 (100MHZ)
  • Six-Axis: ICM-20689/MPU-6000
  • Built-in Receiver: SPI ExpressLRS 2.4G
  • Receiver antenna: 2.4GHz SMD ceramic antenna
  • Size: 29mm x 29mm, fully mounting pattern compatible with the whoop frame in the current market
  • Firmware version: betaflight_4.3.0_STM32F411_norevision
  • OSD: Built-in BetaFlight OSD
  • Recommend VTX: >=200mW, like BETAFPV M03 350mW VTX or TBS Unify VTX
  • Power Cable: 55mm, with BT2.0 connector

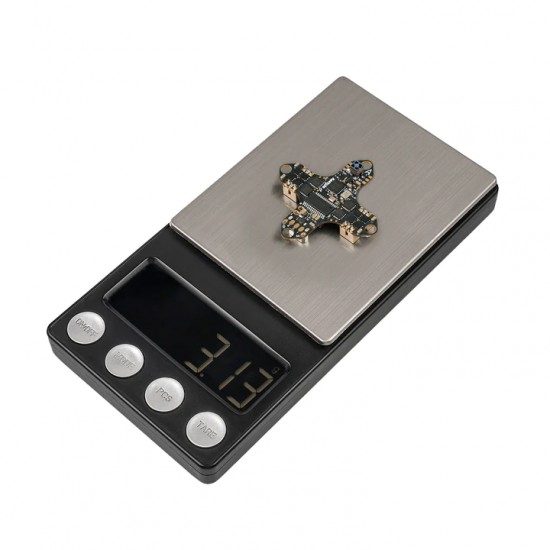

  • Weight: 3.13g (no power cable included)


SPECIFICATIONS OF ESC

  • Power supply: 1S
  • Current: 5A continuous and peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_H_5_48_REV16_8.HEX
  • Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM


RECOMMENDED PARTS LIST

  • Battery: BT2.0 300mAh 1S Battery
  • Frame:  Meteor65 frame / Meteor75 frame
  • Props: 31mm 4-Blades props (for 65mm frame) / 40mm 4-blades props (for 75mm frame)
  • Motors: 0603 motors / 0703 motors / 0802 motors
  • VTX: M03 25-350mW VTX


PACKAGE

1 * F4 1S brushless flight controller (BT2.0 Connector)

4 * M1.2x4mm screws

4 * M1.4x5mm screws

4 * Anti-vibration rubber dampers
