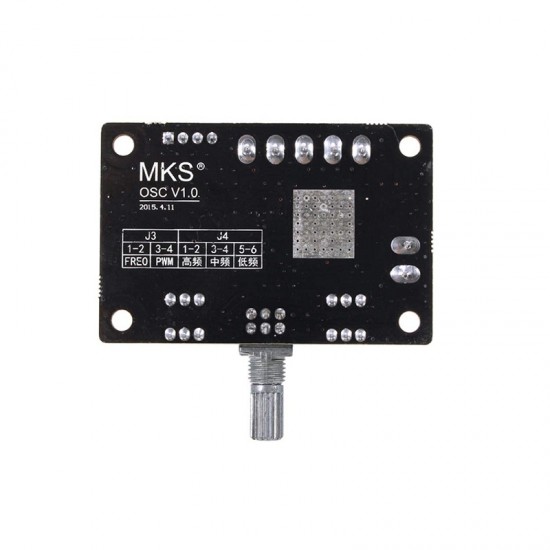

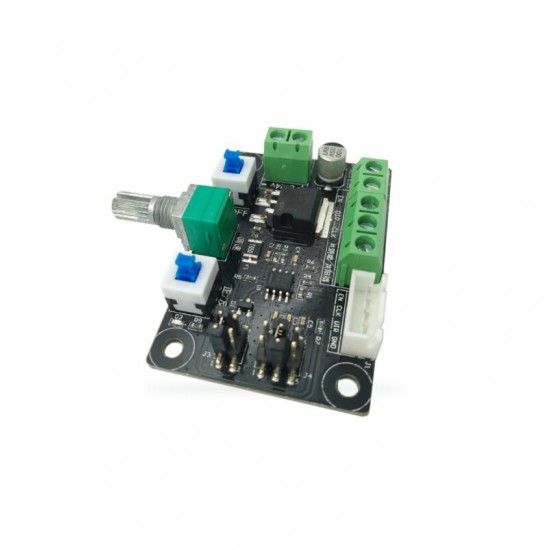

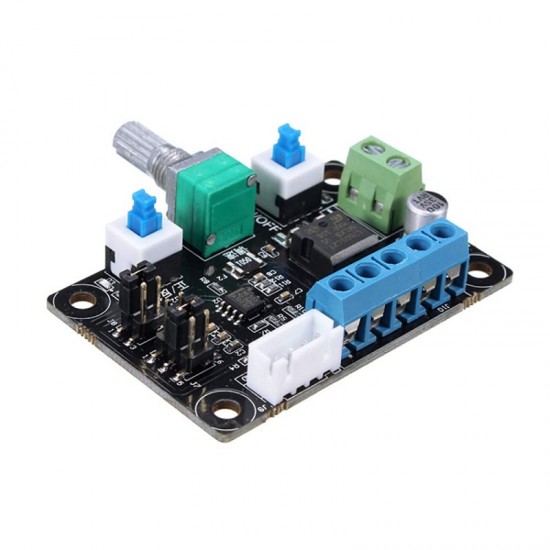

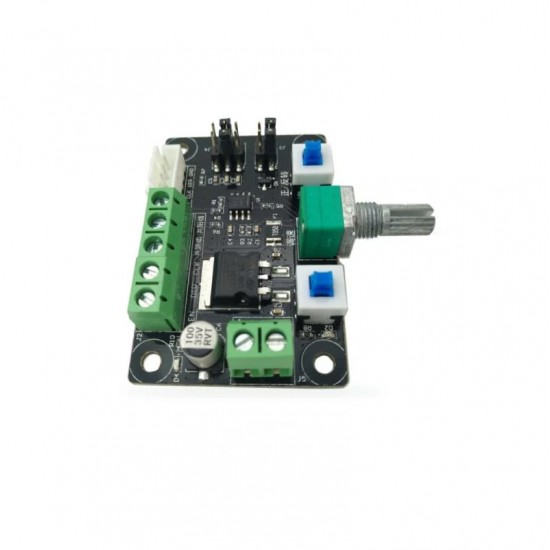

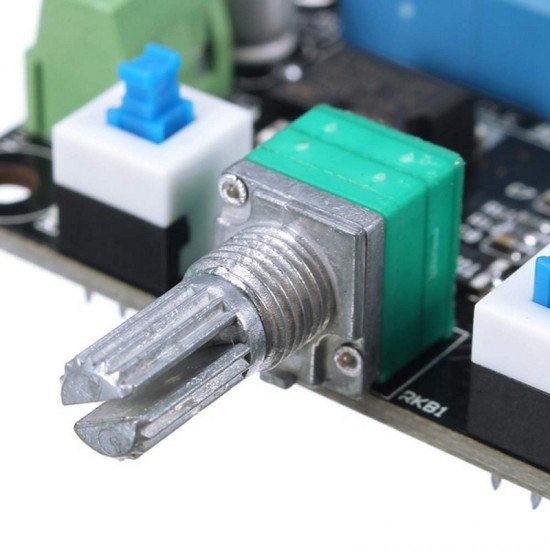

3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module

3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module
Based on 0 reviews. - Write a review
₹742.00
Ex GST: ₹628.81
  • Stock: In Stock
  • Model: 10248
  • SKU: SAT4418
  • Location: India
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This 3D Printer MKS OSC Stepper Motor Controller Pulse PWM Speed Reversing Module is a pulse generating module, which used as a  signal for stepper drivers. To control the stepper motor, it must be equipped with the driver. The module can be used as Easy controller + stepper driver + stepper motor + DC power composed a simple control platform.

It consists of 3 kinds of frequency signal, including 5.4k-160khz, 540-16.6khz, 80-2.4khz, which can be chosen. Support generating a pulse and PWM signal, support skipping stitch choice. For frequency measurement there are two ports of PUL and common-cathode (or common node) can be measured.

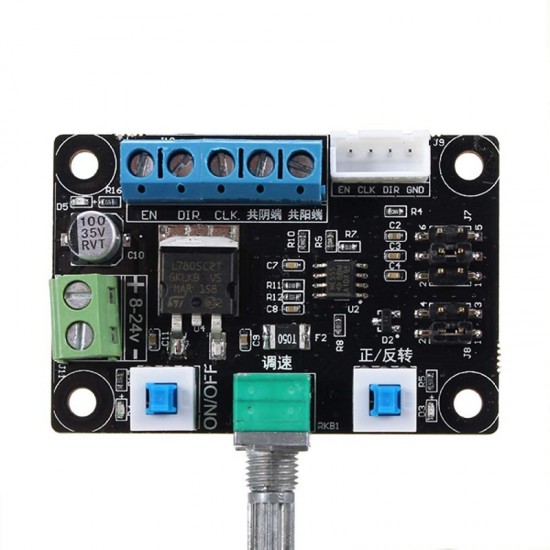

Different stepping motor driver different port sign, but same function

EN=ENA=FREE   Enable

PUL=PULS=CLK  Pulse

DIR=CW=CWW    Direction

Common anode connection (connect with B)

EN+  PUL+   DIR+  all link together  to common  anode port

EN- connect to    EN

PUL- connect to  CLK

DIR- connect to   DIR

Common cathode connection (connect with B)

EN-  PUL-   DIR- all link together  to  common cathode port

EN+  connect to    EN

PUL+ connect to  CLK

DIR+ connect to   DIR

Package Includes:

1 x 3D Printer MKS OSC Stepper Motor Controller Module


6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
