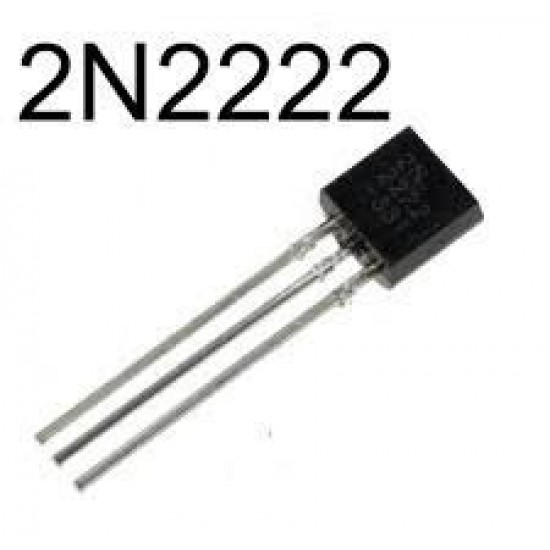

2n2222 Switching Transistor

2n2222 Switching Transistor
2n2222 Switching Transistor
Based on 12 reviews. - Write a review
₹11.80
Ex GST: ₹10.00
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7505
  • SKU: SAT1667
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The 2N2222 is a common NPN bipolar junction transistor (BJT) used for general purpose low-power amplifying or switching applications. It is designed for low to medium current, low power, medium voltage, and can operate at moderately high speeds.


Feature:

  • High current (max. 800 mA)
  • Low voltage (max. 40 V).


Application:

  • Linear amplification and switching.


Specification:

  •  Transistor Polarity: NPN
  •  Collector Emitter Voltage V(br)ceo: 30V
  •  Power Dissipation Pd: 500mW
  •  DC Collector Current: 800mA
  •  DC Current Gain hFE: 100
  •  Transistor Case Style: TO-18
  •  No. of Pins: 3
  •  Collector Emitter Voltage Vces: 400mV
  •  Continuous Collector Current Ic Max: 800mA
  •  Current Ic @ Vce Sat: 150mA
  •  Current Ic Continuous a Max: 800mA
  •  Current Ic hFE: 150mA
  •  Full Power Rating Temperature: 25°C
  •  Gain Bandwidth ft Min: 250MHz
  •  Gain Bandwidth ft Typ: 250MHz
  •  Hfe Min: 100
  •  No. of Transistors: 1
  •  Pin Configuration: a
  •  Power Dissipation Pd: 500mW
  •  Power Dissipation Ptot Max: 500mW
  •  Termination Type: Through Hole
  •  Voltage Vcbo: 60V


Package Content:

1 x 2n2222 Switching Transistor
