Nokia 5110 LCD Display Module 84 x 48

Nokia 5110 LCD Display Module 84 x 48
Nokia 5110 LCD Display Module 84 x 48
Nokia 5110 LCD Display Module 84 x 48
Nokia 5110 LCD Display Module 84 x 48
Nokia 5110 LCD Display Module 84 x 48
Based on 0 reviews. - Write a review
₹229.00
Ex GST: ₹194.07
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7170
  • SKU: SAT1332
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

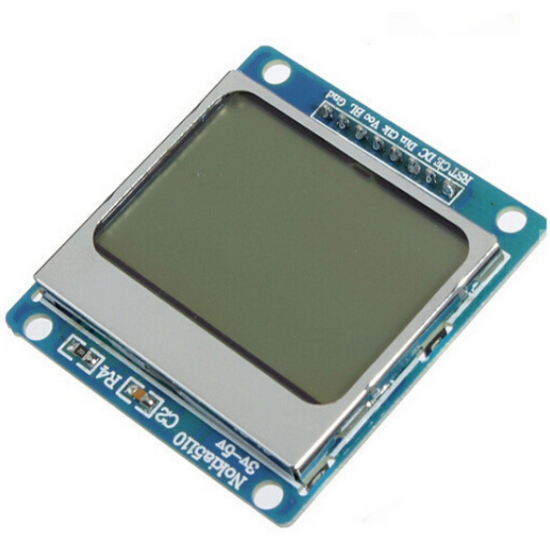

This is a monochrome LCD module comprised of 84x48 pixels that can be used to display rich graphics and text content. Though it's an industrial module, this LCD display is extremely easy to use. This module is a revision that accepts 3-5v input. So no extra level shifter is needed. To have full control, you just need 5 pins. and as a classic display module among open source communities.

It uses the PCD8544 controller, which is the same used in the Nokia 3310 LCD. The PCD8544 is a low power CMOS LCD controller/driver, designed to drive a graphic display of 48 rows and 84 columns. All necessary functions for the display are provided in a single chip, including on-chip generation of LCD supply and bias voltages, resulting in a minimum of external components and low power consumption. The PCD8544 interfaces to microcontrollers through a serial bus interface.

Note: If you want the best result, Use 3.3v in Arduino Project.

Pin Configuration :

  • RST– reset
  • CE– chip selection
  • DC– catalog/commands choice
  • DIN– serial data line
  • CLK– serial Clock Speed.
  • VCC– 3.3V
  • LIGHT– backlight control terminal
  • GND– power negative

 Specification:

  • 84 X 84 dot matrix LCD, can show 4 lines of characters
  • Low power supply, the working current in normal situation is lower than 200µA and has the power-down mode
  • Use serial interface communicate with the master processor, the number of interface signal lines reduced greatly, only 8 signal lines including power and GND.
  • Support different types of MCU, such as the Arduino, AVR, SPI, MCS51, and so on.
  • Can use the conductive glue to connect the module with the printed board, without cables. The metal hooks on the module can fix the module on the printed board, which is very easy to install and replace.
  • Transfer rate up to 4Mbps, can full speed write display data without waiting time.

Package Content:

1 x Nokia 5110 LCD Display Module 84 x 48

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
