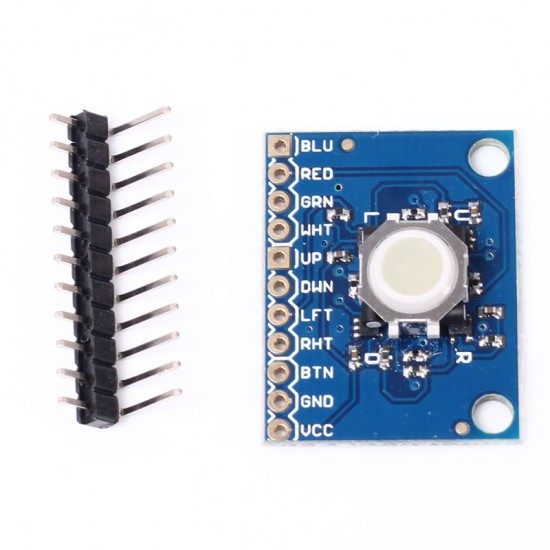

ICSH044A Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module

ICSH044A Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module
ICSH044A Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module
ICSH044A Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module
ICSH044A Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module
ICSH044A Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module
ICSH044A Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module
ICSH044A Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module
Based on 18 reviews. - Write a review
₹589.00
Ex GST: ₹499.15
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7267
  • SKU: SAT1429
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The four spindles on the ICSH044A Blackberry Trackball Breakout Board 360 Degree Trajectory Ball Module Hall Effect Sensor have a tiny circular magnet in the end; each of these is paired with an SMD hall effect sensor, which is used to measure up, down, left, and right movements of the trackball.

An SMD momentary switch is placed under the trackball to give you a select switch. The BTN line will be pulled low when the switch is pressed. Also included on the Trackballer are 4 LEDs: red, blue, green, and white. These can be powered to light the clear trackball up any color you can imagine.

All features are broken out to a 0.1″ pitch header. Regulated, 2.5-5.25VDC power must be provided to power the Hall sensors. The trackball is attached to strong CA glue. Board comes as shown, with all components populated.

The hall-effect sensors and trackball combo are surprisingly sensitive. A slight roll of the trackball creates multiple high/low transitions on the four axis pins, easily picked up by any microcontroller essentially giving you the option of adding a mouse to your project. A 360° rotation of the trackball, along with a single axis, will result in about 9 high/low transitions.


Package Includes:

  • 1 x ICSH044A  Blackberry Trackball Breakout Board + Burg Connector.

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
