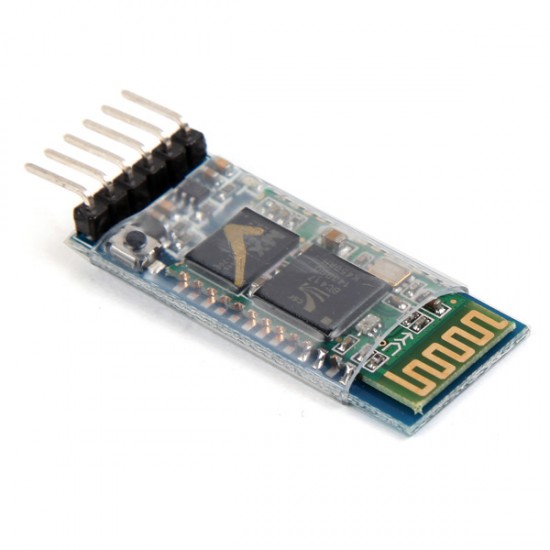

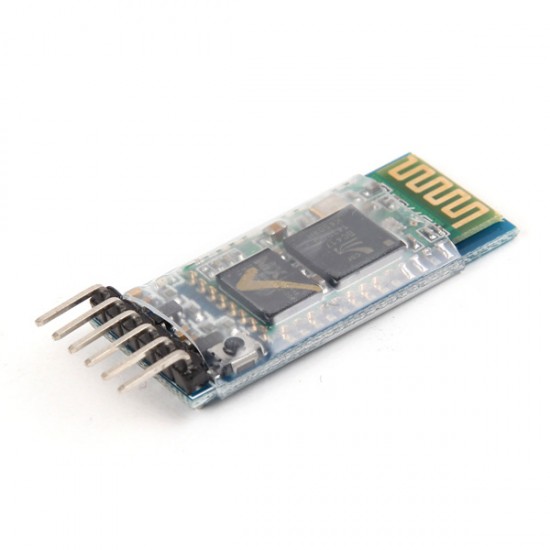

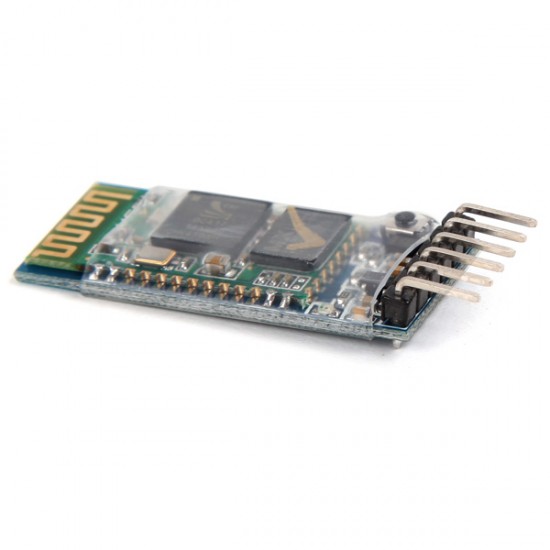

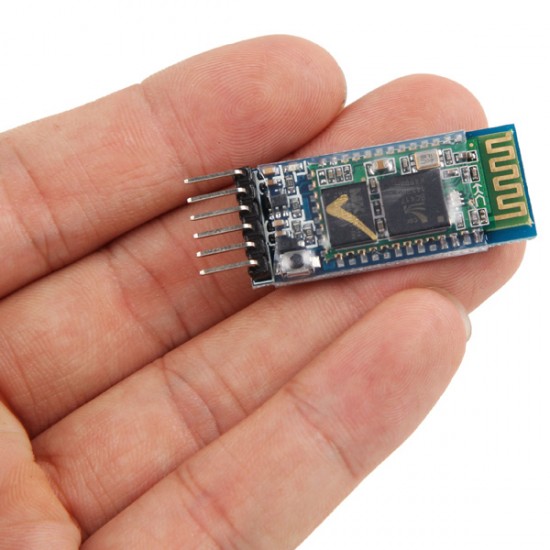

HC-05 Bluetooth Wireless UART Module

HC-05 Bluetooth Wireless UART Module
HC-05 Bluetooth Wireless UART Module
HC-05 Bluetooth Wireless UART Module
HC-05 Bluetooth Wireless UART Module
HC-05 Bluetooth Wireless UART Module
HC-05 Bluetooth Wireless UART Module
HC-05 Bluetooth Wireless UART Module
HC-05 Bluetooth Wireless UART Module
HC-05 Bluetooth Wireless UART Module
Based on 11 reviews. - Write a review
₹379.00
Ex GST: ₹321.19
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 6994
  • SKU: SAT1156
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

HC-05 is a Bluetooth Transceiver Module and has TTL Output. HC-05 6 Pin Wireless Serial Bluetooth Module is a Bluetooth module for use with any microcontroller.  It uses the UART protocol to make it easy to send and receive data wirelessly. This Bluetooth module is a completely qualified Bluetooth V2+Enhanced Data Rate (EDR). It is 3Mbps Module with 2.4GHz radio transceiver and baseband. It has CSR Bluecore 04, an external single-chip Bluetooth system with CMOS technology and AFH, Adaptive Frequency Hopping, feature.

The HC-06 module is a slave only device.  This means that it can connect to most phones and computers with Bluetooth but it cannot connect to another slave-only device such as keyboards and other HC-06 modules.  To connect with other slave devices a master module would be necessary such as the HC-05 version which can do both master and slave.


Specification and Features:

  • Voltage supply: 3.5v to 5v
  • Working current: matching for 30 mA, matching the communication for 8 mA.
  • Speed: Asynchronous: 2.1Mbps(Max) / 160 kbps, Synchronous: 1Mbps/1Mbps.
  • With the integrated antenna and edge connector
  • Sensitively: -80dBm
  • RF Transmit Power: up to +4dBm
  • Supported baud rate: 9600, 19200, 38400, 57600, 115200, 230400 and 460800
  • Slave default baud rate: 9600
  • Data bits: 8
  • Stop bit: 1
  • Parity: no parity
  • A programmable input-output control
  • Supported device: laptop, desktop, mobile, tablet
  • Protocol: IEEE802.15.1
  • Dormancy current: no dormancy.
  • Bluetooth module HC-05 Master and slave Two in one module.
  • Use the CSR mainstream Bluetooth chip, Bluetooth V2.0 protocol standards.
  • Bluetooth protocol: Bluetooth Specification v2.0+EDR
  • Security: Authentication and encryption.

Applications:

  • Embedded Projects.
  • Industrial Applications.
  • Computer and Portable Devices.
  • GPS receiver.

Package Includes:

1 x HC-05 Bluetooth Module.
