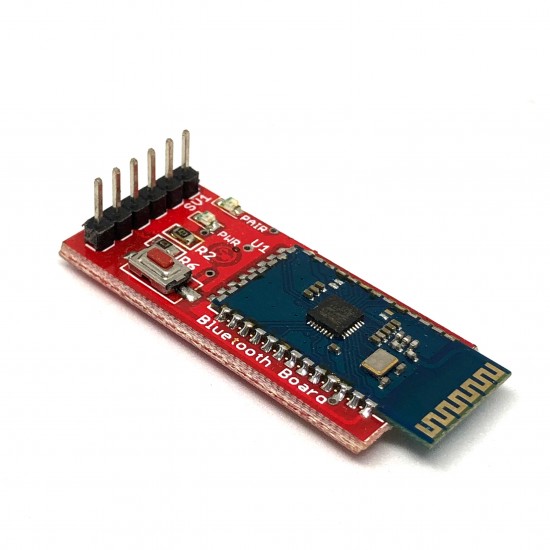

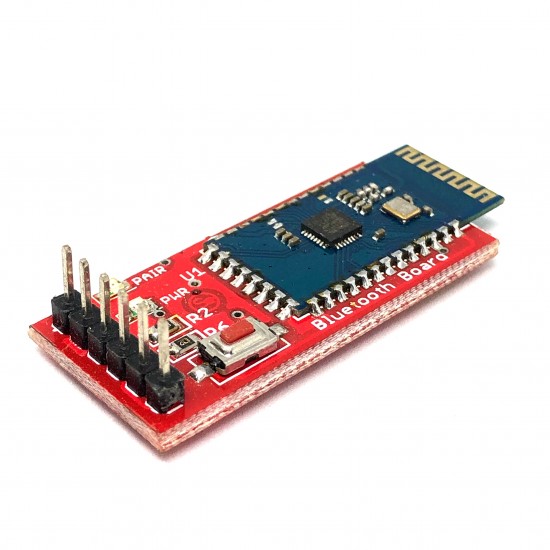

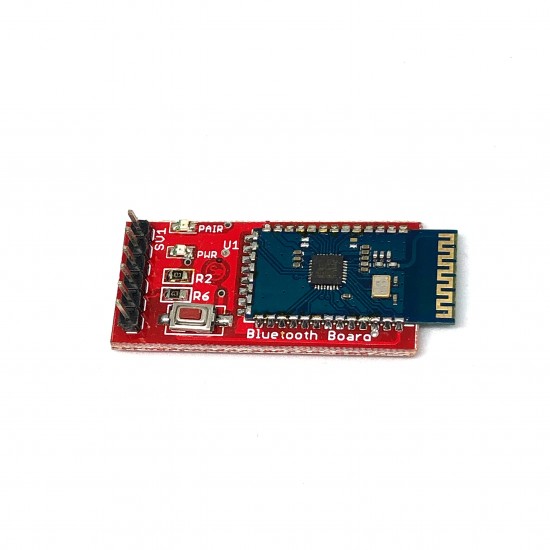

Bluetooth TTL HC05 HC06 Compatible module

Bluetooth TTL HC05 HC06 Compatible module
Bluetooth TTL HC05 HC06 Compatible module
Bluetooth TTL HC05 HC06 Compatible module
Bluetooth TTL HC05 HC06 Compatible module
Bluetooth TTL HC05 HC06 Compatible module
Bluetooth TTL HC05 HC06 Compatible module
Bluetooth TTL HC05 HC06 Compatible module
Based on 9 reviews. - Write a review
₹249.00
Ex GST: ₹211.02
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7053
  • SKU: SAT1215
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

The Bluetooth Module is the latest Bluetooth wireless serial cable! This version of the popular Bluetooth uses the HC – 05 / 06 modules. These modems work as a serial pipe. Any serial stream from 9600 to 115200 bps can be passed seamlessly from your microcontroller to your target. You will need an RS232 to TTL converter circuit or Arduino XBee USB Adapter if you need to attach this to a computer. The remote unit can be powered from 3.3 V up to 5 V for easy battery attachment. All signal pins on the remote unit are 3 V – 5 V tolerant. No level shifting is required. Do not attach this device directly to a serial port.  You can either solder a 6-pin header or individual wires. Please see the related male and female pins below.

Specifications:

  • Bluetooth protocol:  Bluetooth Specification v2.0+EDR
  • Frequency:  2.4GHz ISM band
  • Profiles:  Bluetooth serial port TTL out
  • Sensitivity:  ≤-84dBm at 0.1% BER
  • Modulation:  GFSK(Gaussian Frequency Shift Keying)
  • Security:  Authentication and encryption
  • Working temperature: -20 ~ +75 Centigrade
  • Power supply: +3.3V-5V DC 50mA

FEATURES:

  • Profiles: Bluetooth serial port
  • 3 mm screw drive hole, easy to mount it on somewhere
  • UART interface with programmable baud rate
  • Push switch for issuing AT command
  • VCC GND OUT use 2.54mm standard pins to ease the connections.
  • 2 No LED for Communication and Status
  • With integrated antenna
  • With edge connector
  • Has output status indication led, when output high TTL LED off, and vise versa.

APPLICATIONS:

  • Computer and peripheral devices
  • Any UART with TTL out devices
  • Android Bluetooth applications
  • Industrial control
  • MCU projects

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
