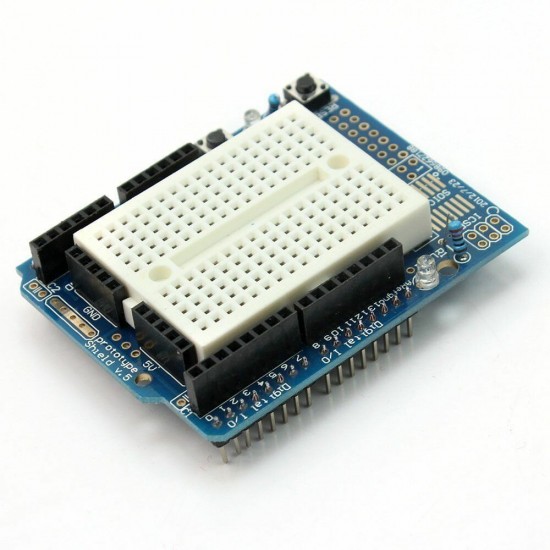

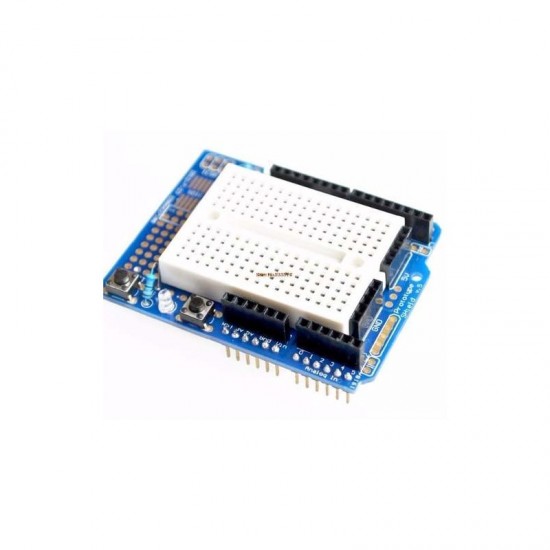

Arduino Uno Protoshield + Mini Breadboard

Arduino Uno Protoshield + Mini Breadboard
Arduino Uno Protoshield + Mini Breadboard
Arduino Uno Protoshield + Mini Breadboard
Arduino Uno Protoshield + Mini Breadboard
Arduino Uno Protoshield + Mini Breadboard
Based on 9 reviews. - Write a review
₹135.00
Ex GST: ₹114.41
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7051
  • SKU: SAT1213
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

Arduino Uno Protoshield directly fits into an Arduino UNO board and breaks out the I/O pins and makes it an expansion board. It makes it very easy to design any customer circuit. You can directly solder components on the board or connect the circuit using 170 point mini breadboard (included). The board is designed to solder both through-hole and SMD components to test them with your Arduino board. Although the SMD area is designed for 24 Pins SOIC integrated circuit and has a lot of space for TH components.

Specification:

  • A surface-mount chip area for up to 14 SOIC size parts
  • It has a nice standard 0.1"x0.1" prototyping grid with big pads100 x 100 mm
  • An IC pattern for adding DIP ICs up to 20 pins
  • Power rails down the middle and sides
  • A reset button and an extra general use button
  • Two 3mm general use LEDs, red and green, as well as Two matching resistors
  • Two 0.1uF capacitors on either side for extra power stability
  • The ICSP header is up top if you like to upload to your Arduino using a programmer
  • Compatible with either tiny breadboards or 'standard' breadboards with the rails removed.
  • Every pin is brought out, including the new 3V and Reset header pins.

Package Include:

  • 1 x Arduino Uno Protoshield + Mini Breadboard

6 Months Warranty

This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Reimbursement or replacement will be done against manufacturing defects.

What voids the warranty:

If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
