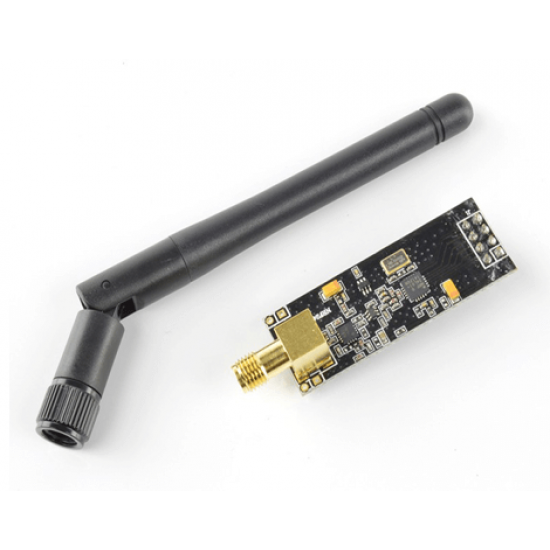

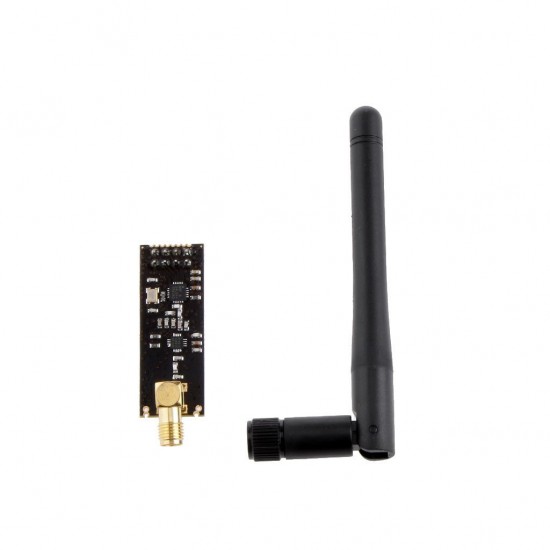

2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna

2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
2.4GHz NRF24L01 PA LNA SMA Wireless Transceiver Antenna
Based on 4 reviews. - Write a review
₹234.01
Ex GST: ₹198.31
Price in reward points: 21
  • Stock: In Stock
  • Reward Points: 21
  • Model: 7173
  • SKU: SAT1335
  • Location: India
Generic Generic
Add to Cart
Buy Now
Add to Wish List Compare this Product
Free Returns
Full refund on Damage
Secure Checkout
We follow highest security standards
Secure Shopping
Best security features
Technical Support
Ask us if you need help

This wireless Transceiver module is an easy and suitable module if you want to set up your wireless communication system at a low cost!! It can achieve a good balance between wireless transition performance and cost! This module comes with the 2.4G antenna (2DB), with a 250Kbps transmission rate on open-air it can reach the 800-1K meters communication distance.

You can easily add it with your own MCU/ARM/PIC/AVR/STM32 system! What's more, this nRF24L01+ module is designed with a Power amplifier and SMA antenna This allowed you to use the wireless communication up to 1000 meters! (No barrier)

Features:

  • It uses 2.4GHz global open ISM band, license-free.
  • 2Mbit/s speed makes high-quality VoIP possible
  • Facilitate the development for customers, without development RF part.
  • Support six-channel data reception.
  • Multi-frequency points: 125 frequency points meet the needs of multi-point communications and frequency hopping.
  • SPI interface facilitates the communication with MCU I/O port.
  • Transmit power is greater than +20 dBm.
  • Low cost: integrated with high-speed signal processing parts associated with RF protocol, such as: automatically re-send lost packets and generate acknowledge signal;
  • Software programming is fully compatible with NRF24L01 modules.

Specifications:

  • PA growth: 20dB
  • LAN growth: 10dB
  • LAN noise figure: 2.6dB
  • Antenna growth: 2dBI
  • Max output power: +20 dBm
  • Operating temperature: -20-70 degree
  • Receiver sensitivity: -92dBm in 2Mbps mode, -95dBm in 1Mbps mode, -104dBm in 250kbps mode
  • Voltage: 3-3.6V
  • Current in mode: 4.2uA
  • Working current in receiver mode: 45mA
  • Working current in transmit mode: 115mA

Package Content:

1 x 2.4GHz NRF24L01 Transceiver module.

1 x SMA Antenna.
